Waste PVC pipe plastic grinding machine is the most fundamental and dominating machine to reduce the size of waste plastics. And the Chinese manufacturer,YOUXIN plastic machinery is the source manufacturer has extensive experience in designing and producing plastic grinding machines.

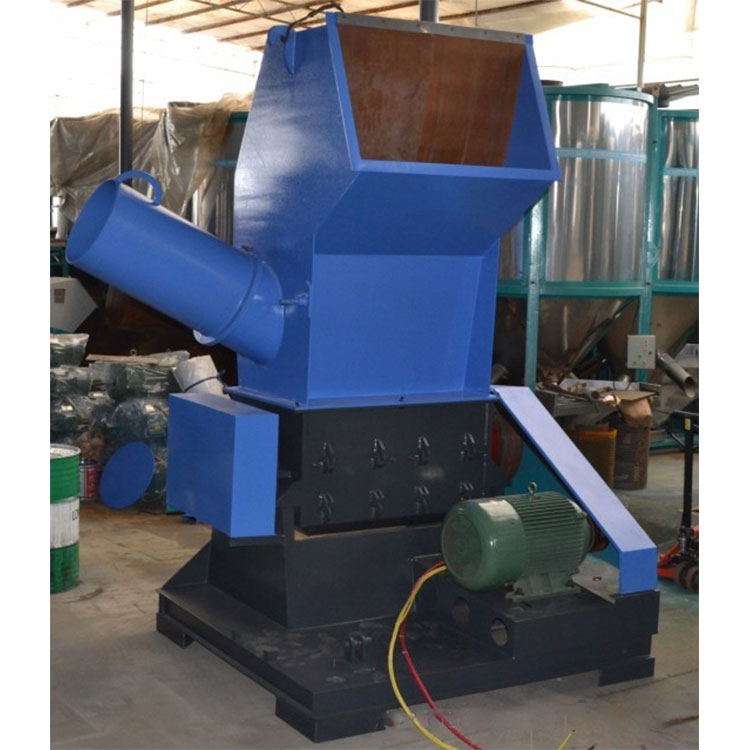

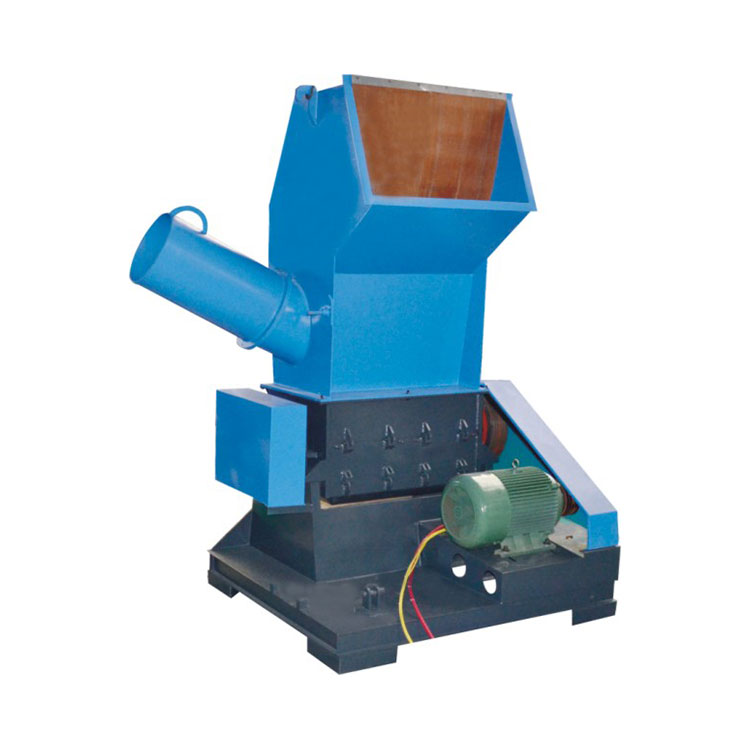

Waste PVC Pipe Plastic Grinding Machine is an essential equipment in waste plastic recycling industrial, specifically designed for grinding and recycling PVC pipes and other hollow plastics. With two inlets of materials ,this grinding machine can deal with both large hollow plastic containers and long,thin-walled pipes,that will be convenient for customer.
| Waste PVC Pipe Plastic Grinding Machine | |
| Usage Method | Reduce Plastic pipes into small size |
| Motor Power | 75KW |
| The cover opening method | Hydraulic |
| Qty of rotating blades | 15PCS |
| Qty of fixed blades | 4PCS |
| Rotor dia. | 600mm |
| Shaft Length | 1200mm |
1. This plastic grinding machine has two inlets ,can both grinding large hollow plastic containers and long ,thin-walled PVC pipes.
2. All spindles have padded strict dynamic and static balance tests to ensure the reliability of machine operation.And the spindle design can be customized.
3. The blades are made by 9CrSi,which is hardness,toughness and abrasion resistant.
4. The motor adopts Pure copper wire,is heavy-duty and durable.
5. The upside hopper is opened by hydraulic.
6. The screen mesh can be produce as the customer need.
7. The grinding machine can be customized to meet specific customer requirements.
Waste PVC Pipe Plastic Grinding Machine suitable for many kind of materials.
Suitable raw materials:
1. All kinds of hollow containers: plastic beverage cans, plastic buckets,iron drums, packing boxes,packing drums.
2. Used household appliances: TV, washing machine, refrigerator shell
3.Pipe material: large pipe, pipe fitting and PE pipe,PVC pipe,thin-walled pipe.
4.Plastic pallets,plastic trays,plastic sheets,plastic plates.
01 Spindle Rotor
All spindles have padded strict dynamic and static balance tests to ensure the reliability of machine operation.And the spindle design can be customized.
02 The bottom
The motor adopts Pure copper wire,is heavy-duty and durable.
The upside hopper is opened by hydraulic.
03 Thickened screen
The screen mesh can be produce as the customer need.
04 Bearing Seat
Protective bearing covers to avoid foreign contamination entering the bearing housing.
05 High-quality blades
The blades are made by 9CrSi,which is hardness,toughness and abrasion resistant.
06 Pulley
The motor pulley is designed to provide mechanical power to the rotary shaft of the machine.
07 Upside hopper.
Machine upside hopper is higher and covered by belt to avoid flakes popped out.
There's two inlets on the hopper.
08 Outlet

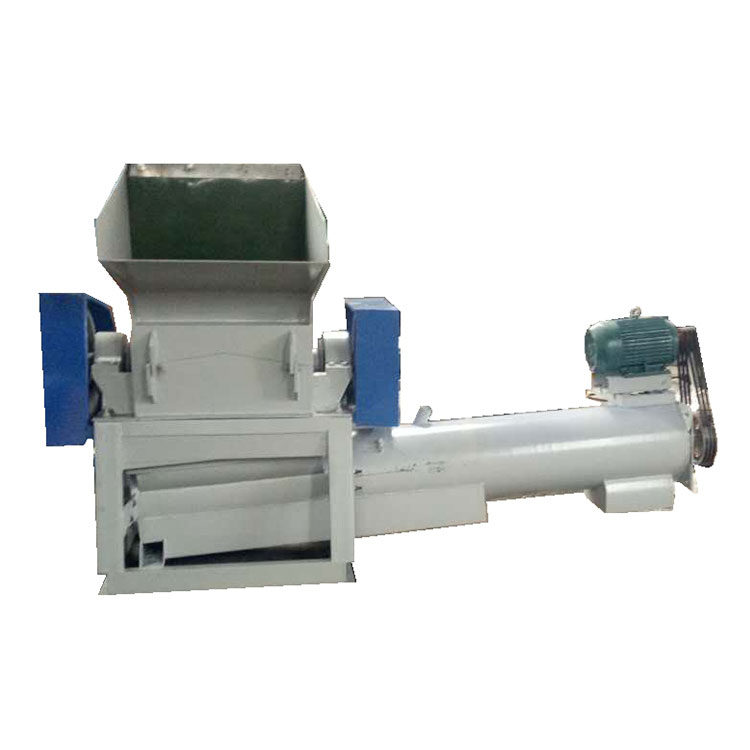

There can be connect with a screw conveyor or a belt conveyor.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
