Waste Plastic PVC Crusher
  • Waste Plastic PVC CrusherWaste Plastic PVC Crusher
  • Waste Plastic PVC CrusherWaste Plastic PVC Crusher

Waste Plastic PVC Crusher

With years of experience in production Waste Plastic PVC Crusher, YOUXIN® plastic machinery can supply a wide range of Waste Plastic PVC Crusher. High quality Waste Plastic PVC Crusher can meet many applications, if you need, please get our online timely service about Plastic Crusher. In addition to the product list below, you can also customize your own unique Plastic Crusher according to your specific needs.

Send Inquiry

Product Description

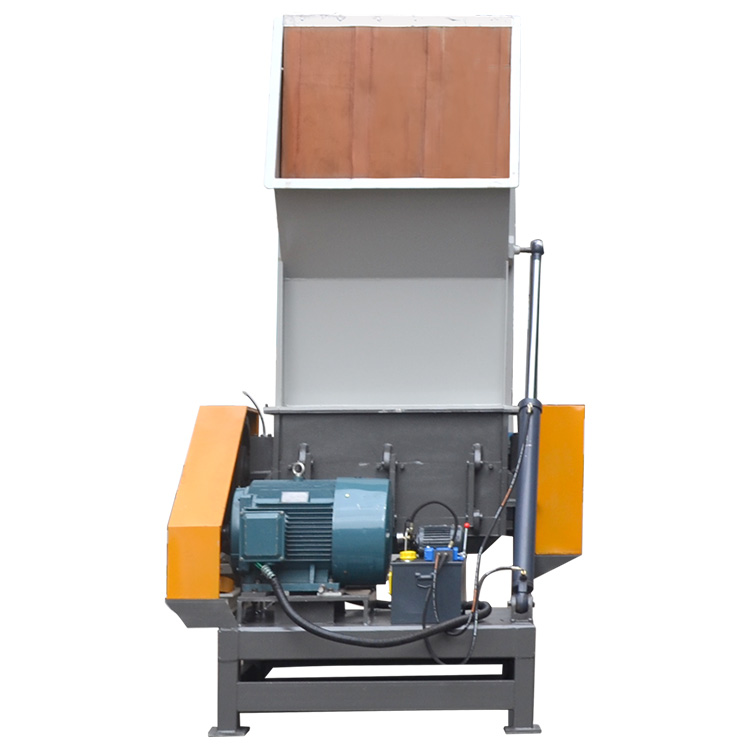

Introduction of Waste Plastic PVC Crusher

Waste Plastic PVC Crusher is specifically used for crushing waste plastic containers, plastic PVC pipes, plastic wires, sponges, carpets, and paper. It is wide range of applications for waste recycling and is an essential crushing equipment for the recycling industry.

Product Parameter of Waste Plastic PVC Crusher

Waste Plastic PVC Crusher
Usage Method Reduce PVC plastics into small size
Motor Power 55KW
The cover opening method Hydraulic
Hydraulic pump motor 1.5KW
Qty of rotating blades 6PCS
Qty of fixed blades 4PCS
Rotor dia. 600mm
Shaft Length 1000mm

Features of Waste Plastic PVC Crusher

◆ The crushing system is with wear resistant design to maximize the consistent running of the system and minimize operational costs.

◆ The crushing knife frame is with hollow flower-type design to feed fast, high and stable output,no block.

◆ Crusher screen is designed specifically for hard flake materials to create a uniform particle size which is easy for washing and drying.

◆The crusher bearing system adopts upper and lower split design, for convenient daily maintenance.

◆The crusher adopts a large-sized belt pulley to increase its shearing force.

◆YOUXIN Plastic crusher's body is made of special high strength welded steel to prevent shell cracking and excessive stress damage while running.

Application of Waste Plastic PVC Crusher

Waste Plastic PVC Crusher is suitable for

Cable conductor

Plastic container

Plastic bucket

Plastic Tank

Plastic dustbin

Plastic pipe

PA carpet/fishing net


Paper roll

Detail of Waste Plastic PVC Crusher

01 Heavy-duty Spindle Rotor

The spindle rotor adopts high-strength welded steel structure with a unique V-shaped design. The spindle design can be customized according to different material requirements

02 The bottom of Waste Plastic PVC Crusher

Adopt high quality motor :

All Copper Design: Smooth output, Strong Power.

Radiator Hood: Make the motor performance good and can be used for a long time.

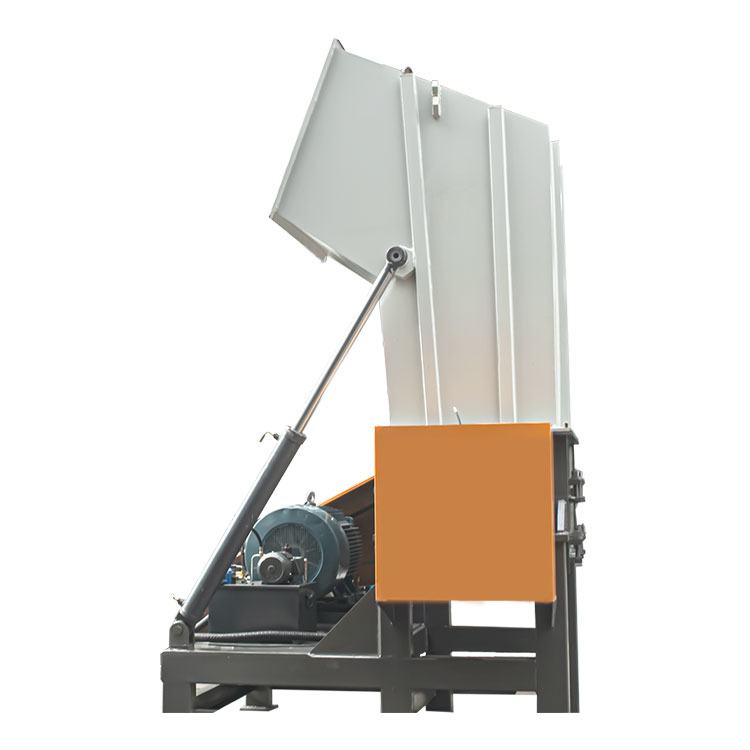

The upper cabinet is hydraulically controlled, which is convenient for machine maintenance and the replacement of blades.

03 Thickened screen

Different pore size, different crushed particle size.

Uniform aperture, thicker and more durable

04 The Outlet of Post-consumer PET Bottle Plastic Crusher

There can be connect with a screw conveyor or a belt conveyor.

Quality of Waste Plastic PVC Crusher

We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.

Professional of Waste Plastic PVC Crusher

OEM and ODM are available.
