YOUXIN plastic machinery is a Chinese professional factory, who is manufacturing high grade PVC scrap grinding machine and supplying knight service for more than 10years.We have a great deal of experience in designing and producing plastic grinding machine, you can count on us.

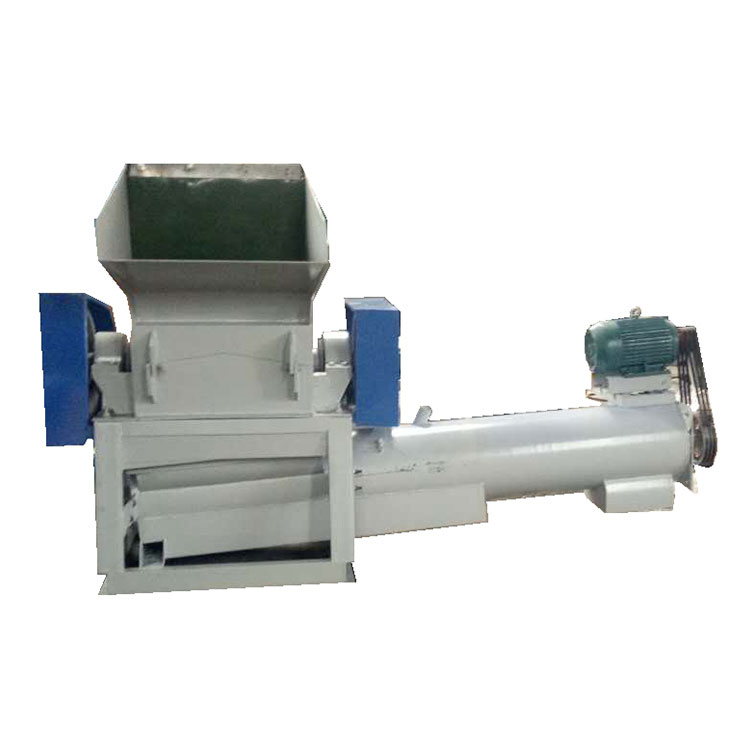

PVC Scrap Grinding Machine is one kind of customized plastic grinding machine,which we designed for customer specially for waste PVC plastics.This plastic grinding machine usually grinding with water,at the bottom there has a screw conveyor,which can send out the flakes and cleaning the materials at the same time.
| PVC Scrap Grinding Machine | |
| Usage Method | Reduce Plastics into small size |
| Motor Power | 15KW |
| The cover opening method | Manual |
| Qty of rotating blades | 6PCS |
| Qty of fixed blades | 4PCS |
| Rotor dia. | 360mm |
| Shaft Length | 650mm |
1. The structure of the grinding machine is made of qualitative steel.
2. The grinding chamber is made of thick-wall steel.
3. The rotor of the grinding machine is made of high grade steel ,with unique design,which is easy to grinding the materials into small.
4. The blade adopts fine alloy steel,which is hardness and toughness.
5. The motor adopts pure copper wire motor with long life and durable.
PVC Scrap Grinding Machine is suit for many kinds of waste plastics.
Suitable raw materials:
1. All kinds of hollow containers: plastic beverage cans, plastic buckets,iron drums, packing boxes,packing drums.
2. Used household appliances: TV, washing machine, refrigerator shell
3.Pipe material: large pipe, pipe fitting and PE pipe.
4.Plastic pallets,plastic trays,plastic sheets,plastic plates.
01 Spindle Rotor
The rotor of the grinding machine is made of high grade steel ,with unique design,which is easy to grinding the materials into small.
02 The bottom of PVC Scrap Grinding Machine
The motor adopts pure copper wire motor with long life and durable.
03 Thickened screen
Various size of screen can be choose.
04 Bearing Seat
Protective bearing covers to avoid foreign contamination entering the bearing housing.
05 High-quality blades
The blade adopts fine alloy steel,which is hardness and toughness.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
