The Waste Plastic Washing Recycling Line is designed and manufactured by YOUXIN Plastic Machinery,which is important waste plastic recycling equipment in plastic recycling process, is widely used for waste plastic PP/PE film, PP woven bags, PP jumbo bags, PP containers, HDPE drums, PP/PE pallets, PET bottles, PP bottles etc. The waste dirty material go through crushing ,washing,drying process will turn to be clean flakes for reusing of pelletizing.
Waste Plastic Washing Recycling Line is widely used to crushing ,washing and dewatering the used hard and soft plastics. The waste plastic washing recycling line can crushing the plastic waste into small flakes,then washing the flakes and separating the dirty, at last dewatering out the water and storage the flakes.
This plastic washing line is high automatic operating and low consume, can save labor, save power and save water, easy to maintenance.
| Waste Plastic Washing Recycling Line | |
| Machine | Function |
| Belt conveyor | For waste materials feeding |
| Wet Film Crusher | Cut the plastic wastes into small pieces and send out into the next machine. |
| Screw conveyor | For the plastic flakes transmission |
| High speed friction washer | Could achieve a good cleaning effects through the blades on the beating and rubbing. |
| Floating washer | For flakes floating washing and conveying |
| Dewatering machine | This machine is mainly used for the drying of the plastic flakes , centrifugal force to spin water moisture off the films and bags. |
The Waste Plastic Washing Recycling Line with high efficiency, working stable, large capacity etc.
The electronic cabinet of this plastic washing line use well-known brand components.
This waste plastic washing line is high automatic operating and low consume, can save labor, save power and save water, easy to maintenance.

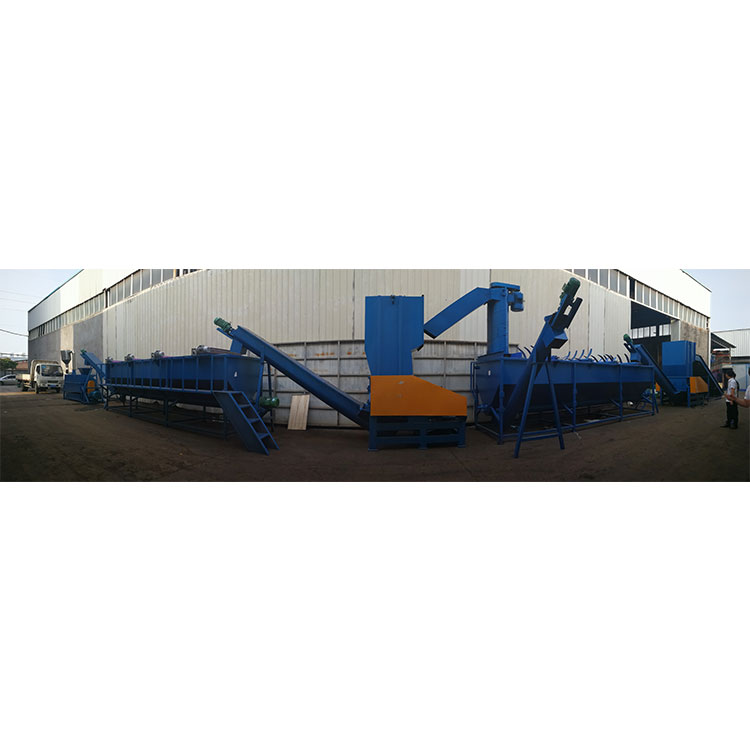

The Waste Plastic Washing Recycling Line usually include:conveyor belt---Wet film Crusher machine---Screw conveyor---Flakes Floating washing tank---Lifting conveyor---Friction washing system---Flakes Floating washing tank---Lifting conveyor--- dewatering machinery ---storage system.
Waste Plastic Washing Recycling Line of YOUXIN Plastic Machinery is capable of processing a wide range of hard and soft plastic waste, for example PP/PE film, PP woven bags, PP jumbo bags, PP containers, HDPE drums, PP/PE pallets, PET bottles, PP bottles etc.
1-Belt conveyor
Conveying the dirty plastic wastes into the plastic crusher
2-Plastic crusher
Crushing the plastic wastes with high speed.
3-Screw conveyor
Convey the crushed plastic flakes to the next machine.
4-Floating washer
Washing out the dirty from the plastic flakes by paddles,and separating the sinking and floating materials.
5-Dewatering machine
Remove the water out from the material by centrifugal force.
Shredded plastic can have different sizes (small, medium, large) and can be sorted by colors to add value.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, Facebook, WhatsApp , WeChat, etc.)
