The PET Washing Recycling Line is designed and manufactured by YOUXIN Plastic Machinery,which is specially produced for crushing and washing dirty PET bottle materials, such as home appliance plastics, groceries plastics, PET bottles, PE milk bottles, oil bottles, PP bottles, etc.. The PET bottle recycling line is working with high efficiency, working stable, large capacity etc.
PET Washing Recycling Line include bale opener, crushing, rinsing washing, friction cleaning and dehydration drying. The cleanliness of the finished product can reach 95%, and the water content can reach 3-5%. The specific process and configuration of the plastic bottle crushing washing machine should be selected and designed according to the material situation and the customer's specific requirements to obtain the highest cost performance and efficiency.
| PET Washing Recycling Line | |
| Machine | Function |

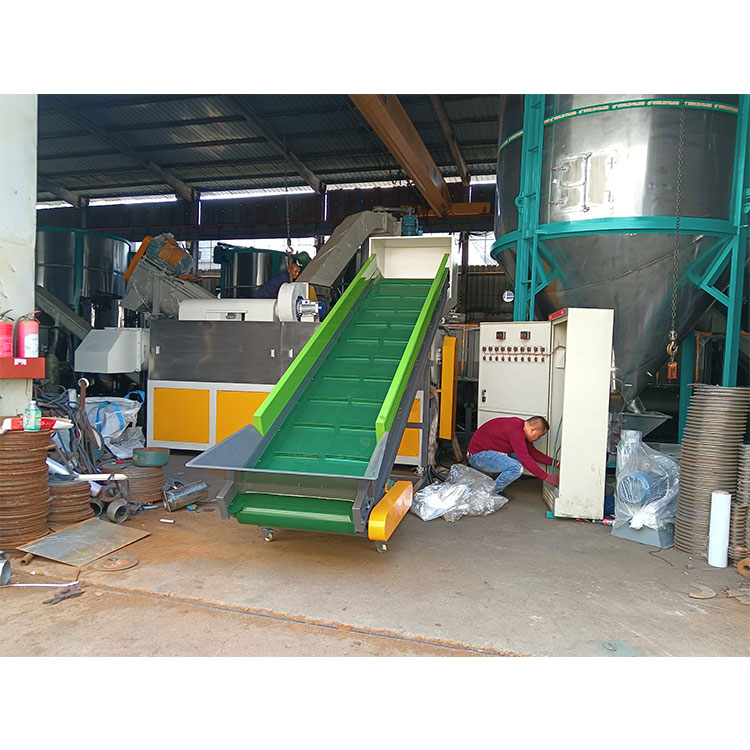

| Belt conveyor | For waste materials feeding |
| Wet plastic Crusher | Cut the plastic wastes into small pieces and send out into the next machine. |
| Screw conveyor | For the plastic flakes transmission |
| High speed friction washer | Could achieve a good cleaning effects through the blades on the beating and rubbing. |
| Floating washer | For flakes floating washing and conveying |

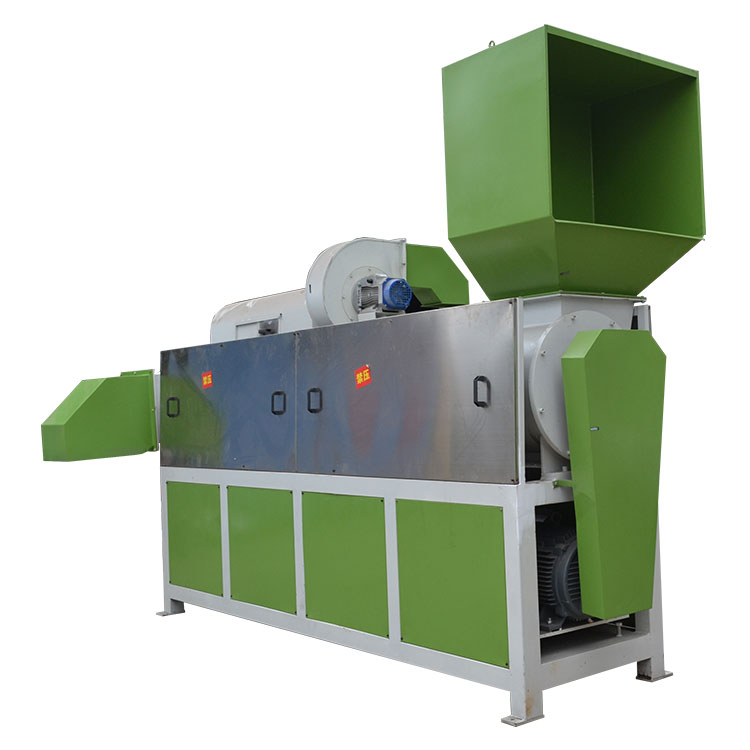

| Dewatering machine | This machine is mainly used for the drying of the plastic flakes , centrifugal force to spin water moisture off the films and bags. |
The PET Washing Recycling Line is widely used to treat PET bottle, and crushing the PET bottles into flakes. It is a crushing , washing ,and drying line, the output is the cleaned PET flakes. The PET washing line is high automatic operating and save labor cost and low after maintenance. With advanced international industry concepts and technologies to meet waste plastic recycling at home or abroad.

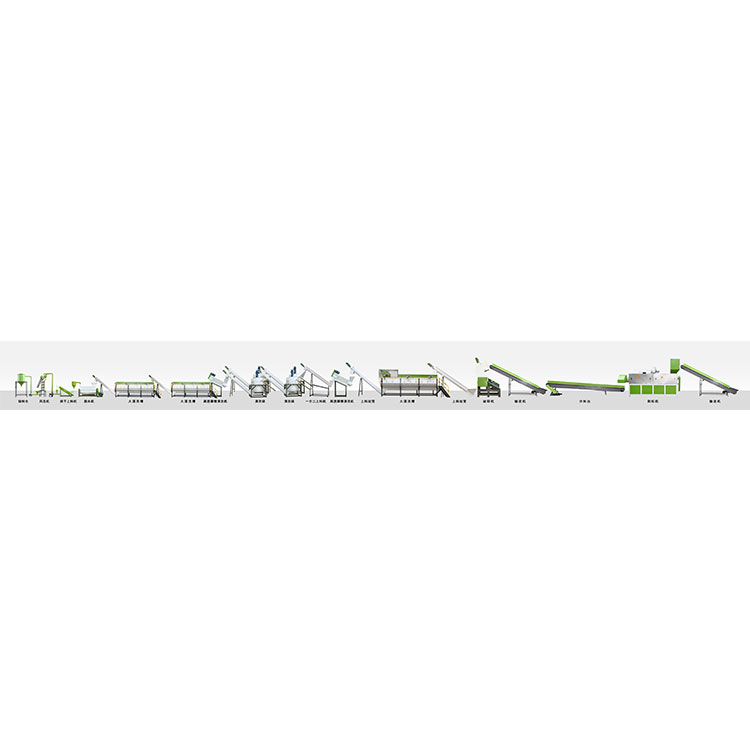

The PET Washing Recycling Line usually include:conveyor belt---Wet film Crusher machine---Screw conveyor---Flakes Floating washing tank---Lifting conveyor---Friction washing system---Flakes Floating washing tank---Lifting conveyor--- dewatering machinery ---storage system.
PET Washing Recycling Line of YOUXIN Plastic Machinery is specially produced for crushing and washing dirty PET bottle materials, such as home appliance plastics, groceries plastics, PET bottles, PE milk bottles, oil bottles, PP bottles, etc.. The PET bottle recycling line is working with high efficiency, working stable, large capacity etc.
1-Plastic crusher
Crushing the plastic wastes with forced-feeding
2-Forced-feeding motor
3-Forced-feeding
Forced to help the PET bottle get into the crushing chamber.
5-Screw conveyor
Translate the plastic flakes into the next machine.
Shredded plastic can have different sizes (small, medium, large) and can be sorted by colors to add value.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, Facebook, WhatsApp , WeChat, etc.)
