Since its establishment, YOUXIN Plastic Machinery has been deeply researching and developing waste plastic shredding equipment. For over a decade, we have produced and supplied a large number of high-quality plastic shredders to domestic and overseas customers. Such as plastic lump shredders, plastic film shredders, waste plastic pipe shredders, plastic drum shredders, plastic pallet shredders.

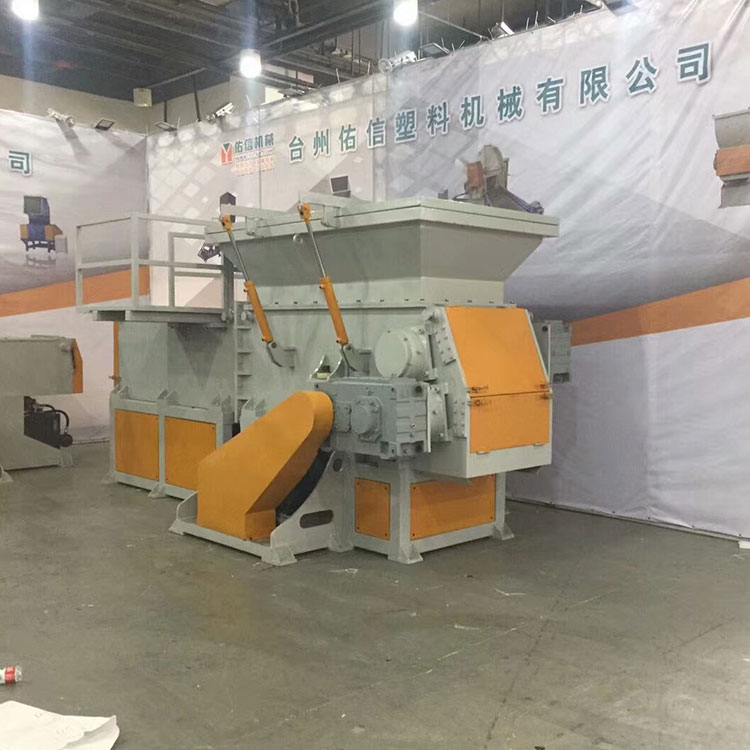

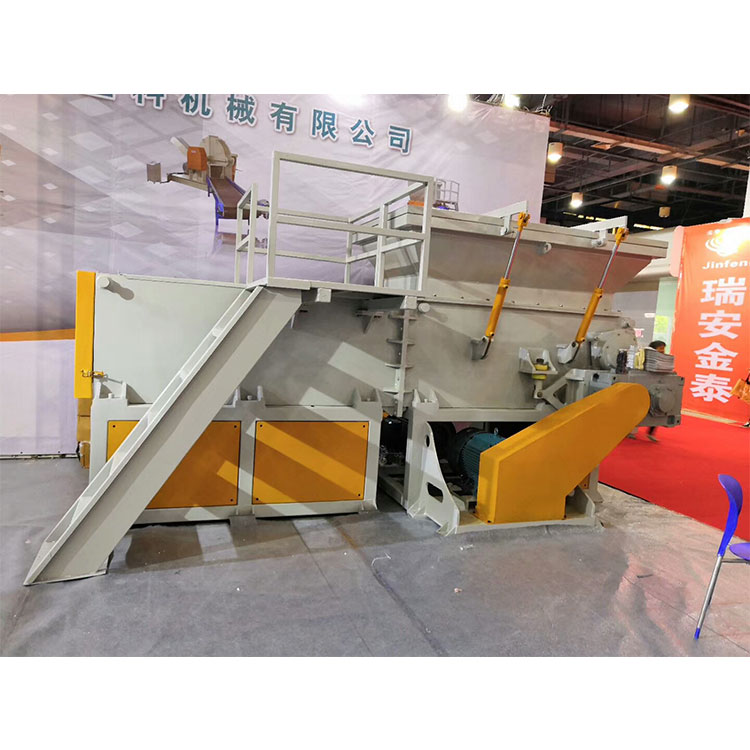

What is a Waste Plastic Pipe Shredder?
Waste plastic pipe shredder is one of the waste plastic shredder which is designed specially for large and thick-walled plastic pipes. This machines are Made of high quality raw materials and using world class technology, and are widely appreciated for their salient attributes like efficient and consistent performance, lower power consumption, durability and corrosion resistance.
| Waste Plastic Pipe Shredder | |
| Model | 1000 |
| Motor Power | 45KW |
| Hydraulic motor | 5.5KW |
| Qty of rotating blades | 63PCS |
| Qty of fixed blades | 4PCS |
| Shaft Length | 1000mm |
Waste plastic pipe shredder is equipped with only one shaft with rotary blades, a hydraulic-driven pusher plate/arm, and a screen underneath the rotating shaft. The shaft is special designed and made by strong steel, and the rotary blades are made by D2 steel which is toughness and Wear-resistant. The hydraulic-driven has water cooler to cooling the pump when running.
The waste plastic pipe shredder is ideally suited for reduction of a wide range of different materials:
plastic pallet, plastic drum, plastic bucket, plastic film, waste appliances shell, garbage plastic drum, IBC drum, IBC barrel,garbage bag, rubbish bag, plastic pipe, washing machine, forklift pallet, lead acid battery shell, etc.
01 Motor
Using heavy duty motor with prolonged service life and durable.
02 Electronic cabinet
The electrical components adopt known brands, with high configuration and operation.
03 Gearbox
hard gear side box with high torque.
04 Hydraulic slider
The hydraulic ram can push the material against the rotor.
05 Hydraulic pump
Oil cylinder effective is fitted with water cooling device.
06 Shaft
The rotary shaft made by high quality carbon steel,anti-worn
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, Facebook, WhatsApp , WeChat, etc.)
