The PVC Cable Crushing Washing Line is manufactured by YOUXIN Plastic Machinery, which is the professional factory has deeply in producing Plastic washing and recycling equipment for many years. The waste PVC cable raw materials are crushed, washed, dried, collected, etc., and turned into clean flakes for further granulation. We can also customize line components according to your special requirements.
PVC Cable Crushing Washing Line conveyor belts, metal detectors, crushers, floating sinks, washing machines and material collection and packaging systems.The plastic washing line is suit for recycling many kinds of plastic wastes, such as PVC cable, ABS shells, PE pipe, PVC pipe, PPR pipe, PE barrel, PS, etc..
PVC Cable Crushing Washing Line | |
Machine | Function |
Belt conveyor | For waste materials feeding |
plastic Crusher | Cut the PVC cable into small pieces and send out into the next machine. |
Screw conveyor | For the plastic flakes transmission |
High speed friction washer | Could achieve a good cleaning effects through the blades on the beating and rubbing. |
Floating washer | For flakes floating washing and conveying |
Dewatering machine | This machine is mainly used for the drying of the plastic flakes , centrifugal force to spin water moisture off the films and bags. |
1.Climbing conveyor: Transport the material evenly to the pulverizer
2.Big Mouth Crusher:Break the cable sheath into small pieces
3.Spiral feeder:Lift the crushed material to the sink
4.Rinse tank:Clean broken material
5.Plastic dehydrator:Dry the water in the plastic
6.Spiral feeder:Put the material into the winnowing machine
7.Air classifier Label paper separator:Separation of impurities in materials
8.Spiral elevator for tons of bags:Put the finished material into the ton bag
The PVC Cable Crushing Washing Line usually include:conveyor belt---Plastic Crusher machine---Screw conveyor---Flakes Floating washing tankr---Friction washing system---Flakes Floating washing tank---Lifting conveyor--- dewatering machinery ---storage system.
PVC Cable Crushing Washing Line is widely used to washing recycling the used Plastic wastes. This Plastic crushing washing line is suit for recycling PVC cable, PVC pipe, ABS shell, Plastic barrel, Plastic container, plastic tank, plastic drum ,plastic pallets, plastic film and so on.

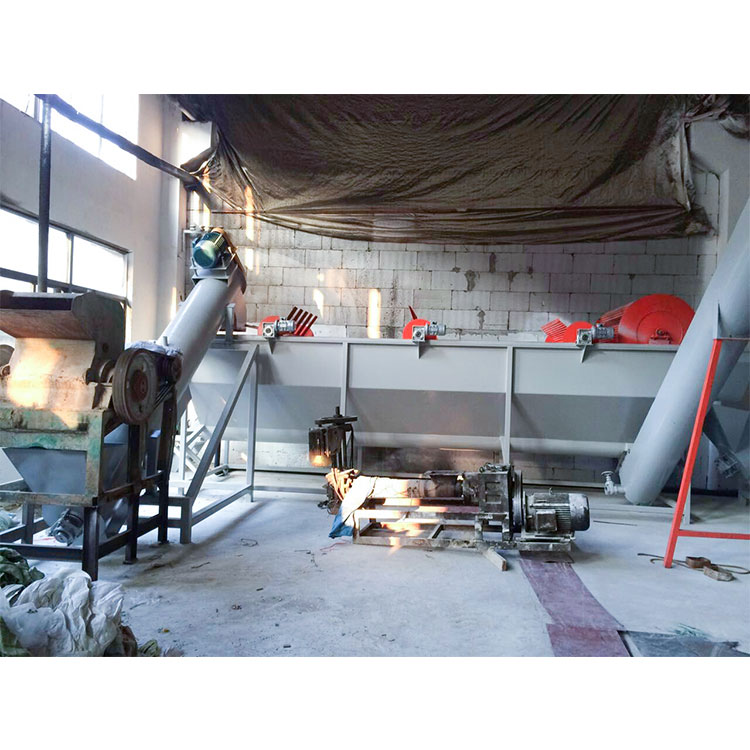

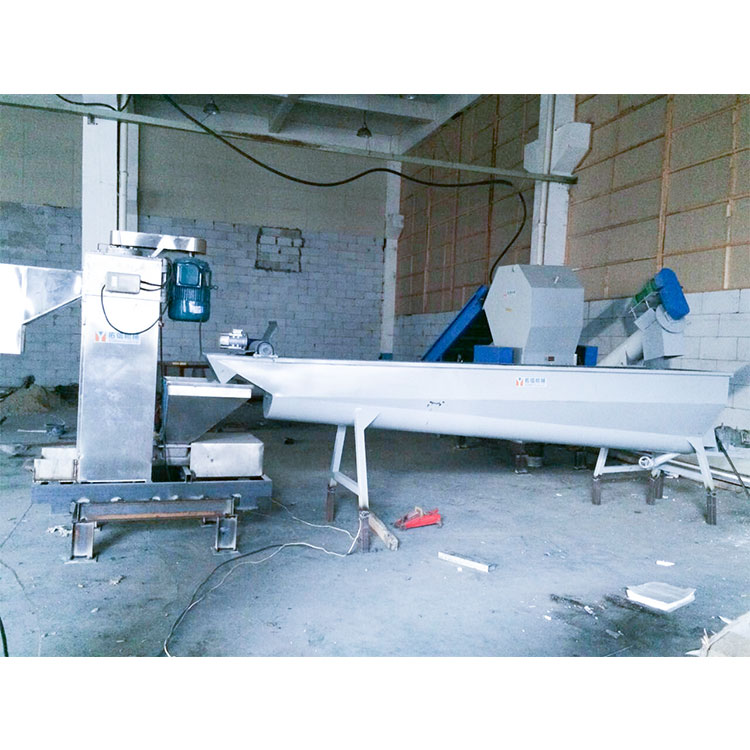

Overall view of PVC Cable Crushing Washing Line
OEM and ODM are available.
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, Facebook, WhatsApp , WeChat, etc.)
