The plastic film washing line manufactured by YOUXIN Plastic Machinery is high automatic operating and low consume, can save labor, save power and save water, easy to maintenance, which is capable of processing a wide range of hard and soft plastic waste, for example, agricultural films, greenhouse films, package films,PE waste film,PP waste film,PVC waste film,industrial film,printed film and etc.
Plastic Film Washing Lines can crushing washing recycling the used, dirty waste PP PE films/ bags,protect the environment,avoid white pollution.
This plastic film washing line can easily wash and recycle waste PP PE films/bags. Waste and dirty PP PE films/bags can be processed step by step, by this recycling machine. It is special for washing PP PE films/bags. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after been washed.
| Plastic Film Washing Line | |
| Machine | Function |
| Belt conveyor | For waste materials feeding |
| Wet Film Crusher | Cut the PP PE film into small pieces and send out into the next machine. |
| Screw conveyor | For the plastic flakes transmission |
| High speed friction washer | Could achieve a good cleaning effects through the blades on the beating and rubbing. |
| Floating washer | For flakes floating washing and conveying |
| Dewatering machine | This machine is mainly used for the drying of the plastic flakes , centrifugal force to spin water moisture off the films and bags. |
1. This plastic film washing line is planned to crush and wash and dry the PP PE (LDPE / HDPE) film\bottle\bucket.This recycling line consists of crusher, floating rinsing tank, cold & hot washer, friction cleaning equipment, dryer machine, storage silo.
2. This plastic washing line can be designed in view of how dirty the processed plastic material is and accordingly ensure our clients could get dry and clean PP PE plastic flakes.
3. This plastic washing line could comply with that next granulator machine to get plastic granules or plastic pellets to be sold at a higher price.
The Plastic Film Washing Line usually include:conveyor belt---Wet film Crusher machine---Screw conveyor---Flakes Floating washing tank---Lifting conveyor---Friction washing system---Flakes Floating washing tank---Lifting conveyor--- dewatering machinery ---storage system.
Plastic Film Washing Line is widely used to washing recycling the used PP/PE plastic soft plastic. Such like shopping bags, packing films, garbage bags, woven bags, non-woven bags and films. This recycling machine can crushing washing and drying the dirty soft plastic into clean film flakes.

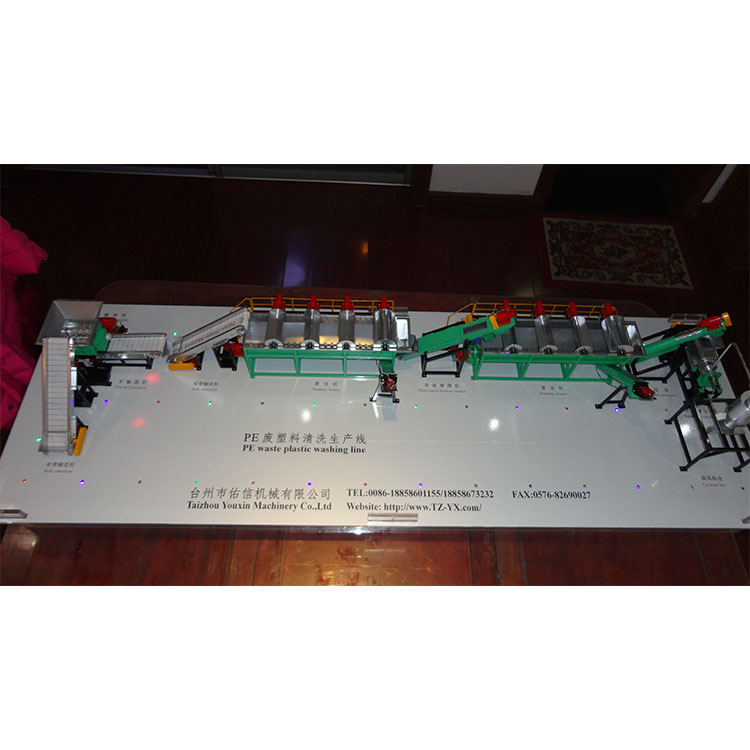

1-Overall view of plastic film washing line(
2-High speed friction washer
After crushing material from enters the mouth, through the high speed on the axis of the blade flap and spray water to the common function of good cleaning effect.

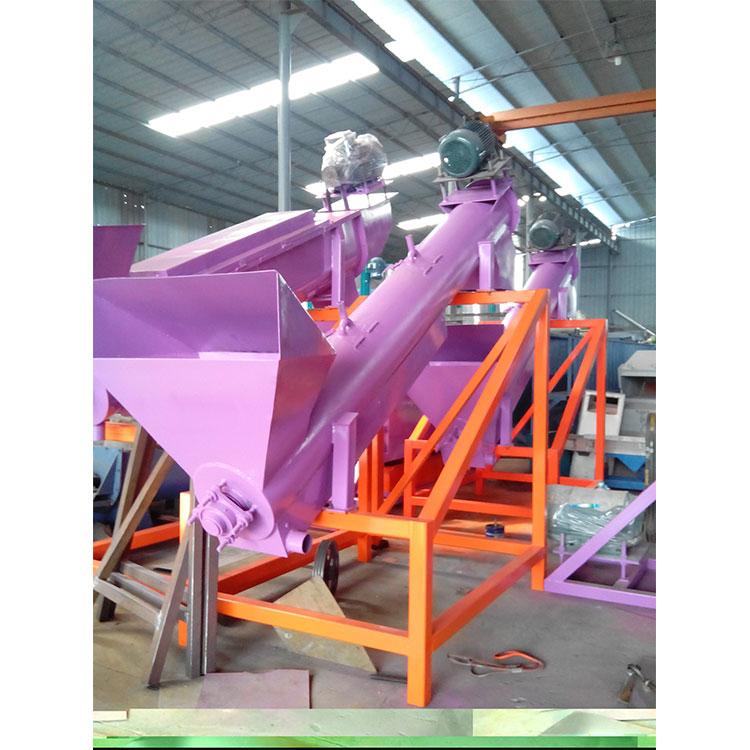

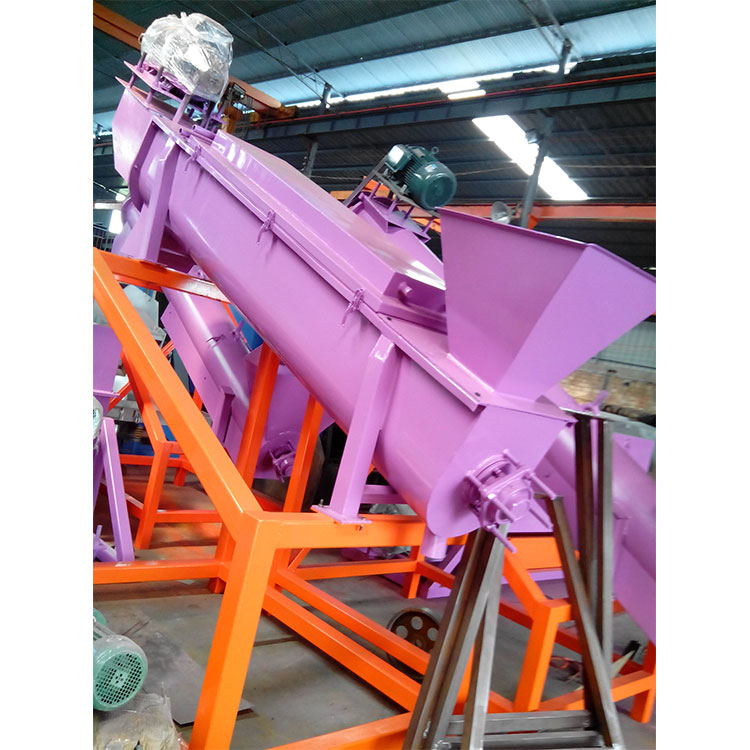

3-Screw conveyor
Convey the crushed film to the next machine.
Shredded plastic can have different sizes (small, medium, large) and can be sorted by colors to add value.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, Facebook, WhatsApp , WeChat, etc.)
