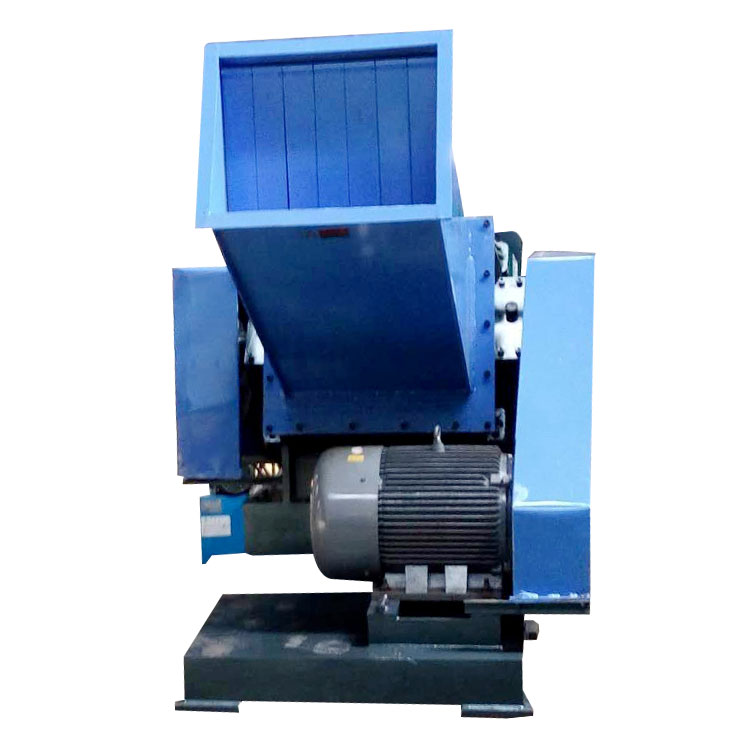

The Plastic Sewage Pipe Crusher from Zhejiang YOUXIN plastic machinery Co., Ltd is a machine used for crushing and recycling HDPE pipes. It is designed to efficiently break down high-density polyethylene (HDPE) pipes and turn them into small, manageable pieces that can be used for recycling.
Plastic sewage pipe crusher works by feeding pipes through a crushing chamber with rotating blades or hammers that shred them into small pieces. It may also include a conveyor belt that transports the shredded pieces into a secondary system for further processing or recycling.
| Plastic Sewage Pipe Crusher | |
| Usage Method | Reduce Plastic pipe into small size |
| Motor Power | 75KW |
| The cover opening method | Hydraulic |
| Qty of rotating blades | 6PCS |
| Qty of fixed blades | 4PCS |
| Shaft Length | 800mm |
| Screen mesh | 20mm |
1. The plastic sewage pipe crusher adopts Advanced structure and drive design, strong crushing capacity
2. High and steady quality, long duration
3. Independent electrical control, over-load protection
4. The moving cutting knife stand is a step designing to make cutting force resolve and increase the cutting force times.
5. The installation of the cutting tool can be adjusted. The cutting tool can be sharpened again and again, its use life is very long.
Plastic Sewage Pipe Crusher is used for crushing waste plastic pipes, such as HDPE Pipe,PVC Pipe ,PPR pipe ,waste sewage pipe , waste plastic water pipe,plastic gas pipe etc.
By using a Plastic HDPE Pipe Crusher, waste HDPE pipes can be processed and reused, reducing the amount of plastic waste sent to landfills. Additionally, it contributes to the promotion of recycling efforts, helping to reduce the environmental impact of plastic waste. The machine is a sustainable solution to manage HDPE waste and encourages a circular economy that is resource-efficient and cost-effective.
01 Spindle Rotor
Spindle Rotor can disperses the pressure and therefore it is good to be used to crushing hard and raw material.
02 Hardness blades
The material of the blade is 9CrSi,the hardness 57-59 degrees,the toughness is good,the wear-resistant,the blade is adjustable.
03 The bottom of Plastic Sewage Pipe Crusher
High quality Pure copper motor output stability efficiency is higher.

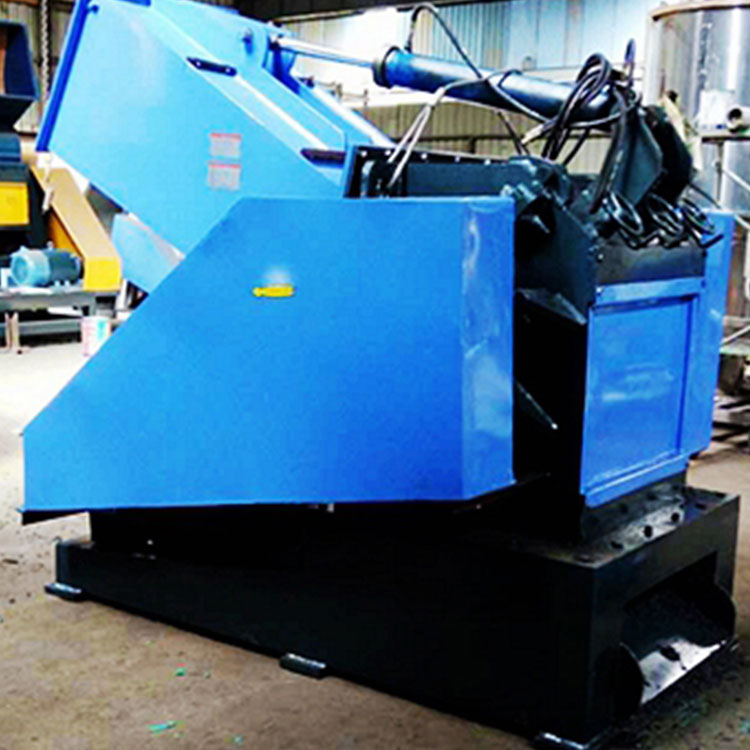

Hydraulic opening system for replace the blades.
04 Thickened screen
Customized high-quality and stable screen can be customized screen aperture.
05 Bearing Seat
Protective bearing covers to avoid foreign contamination entering the bearing housing.
06 Motor pulley and V-belt
Heavy motor pulley with high-quality V-belt to make the machine working strong and stability.
07 Force feeding system
Help to put the long pipe into the crusher.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
Our crusher has many models. According to material size and discharge size.
Our crusher has many models. According to material size and discharge size. Recommend different equipment models. Please contact us for details.
