YOUXIN Plastic Machinery is a specialized manufacturer in China,we have a professional and experienced design team,that can offer high quality and excellent performance waste plastic lumps shredder in common, and also can customized suitable design dimensions and installation methods according to customer needs.

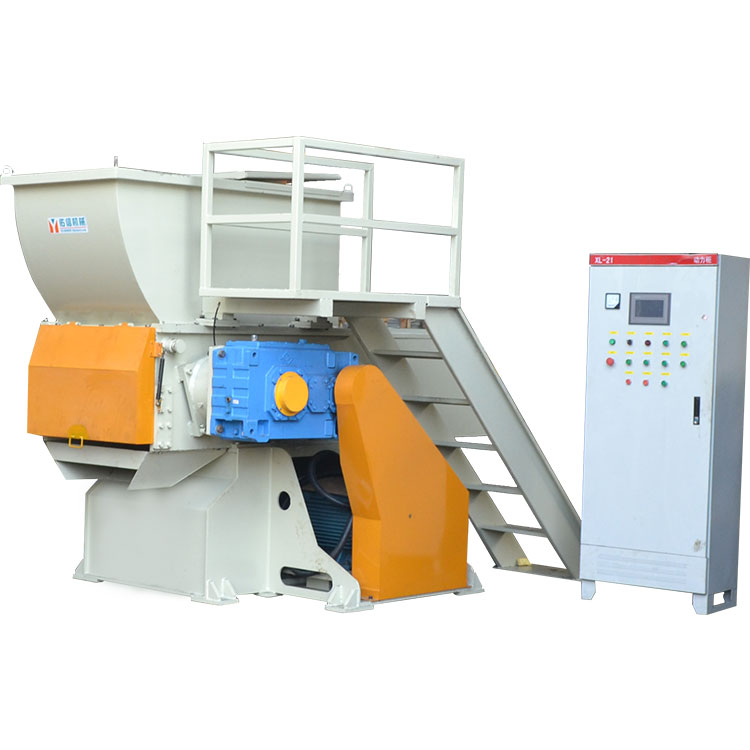

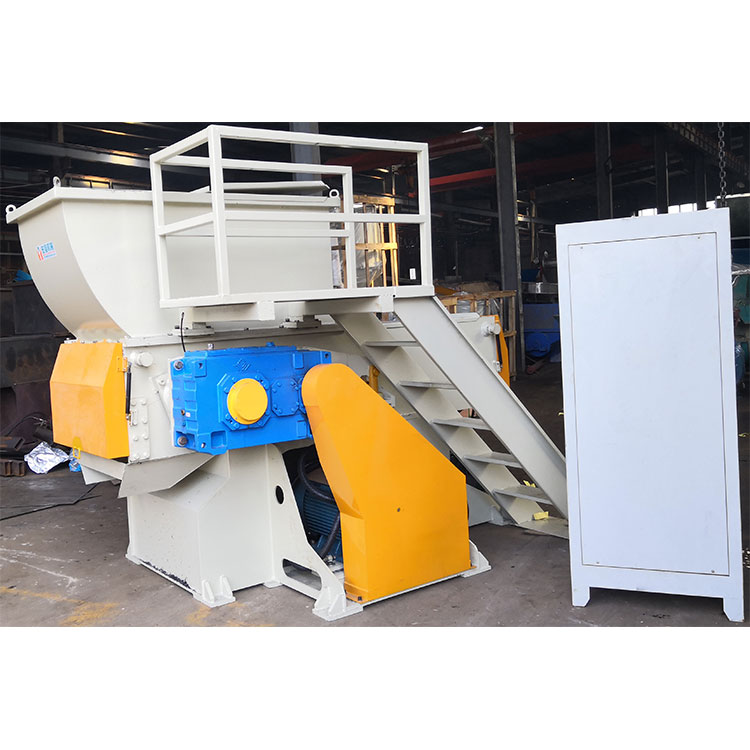

Waste Plastic Lumps Shredder is a kind of waste plastic waste sized reducing machine, which is widely used in waste plastic recycling process,specially to shred the huge and heavy plastic lumps which is too hard to crusher. The waste plastic lumps works in a slow speed,and high torque, can shearing the waste plastics by the hydraulic slider pushed the material to the shaft with blades.
| Waste Plastic Lumps Shredder | |
| Model | 800 |
| Motor Power | 37KW |
| Hydraulic motor | 5.5KW |
| Qty of rotating blades | 48PCS |
| Qty of fixed blades | 4PCS |
| Shaft Length | 800mm |
| Effect hydraulic travel distance | 800mm |
1-The plastic shredder adopts pure copper wire motor,with long duration.
2-The plastic shredder equips high torque gearbox to reduce the speed of the shaft and increase the shearing force.
3-The waste plastic lumps shredder running at a low speed with high torque, can be shredded the plastic lumps with no difficulty, at the same time that will cause low noise and less dust.
4- PLC control electronic cabinet.
Waste Plastic Lumps Shredder widely used in waste plastic recycling industry,to treat waste the plastic wastes which are huge,heavy ,toughness,and hardly crushing.
For example:Plastic lump, plastic block, plastic die material, plastic head material, plastic pipe, plastic sheet, PE film, PP woven bag, PET bottle, Industrial waste plastics.
01 Motor
Adopts high quality motor which is smooth output and strong power
02 Electronic cabinet
PLC control with over-load protection
03 Gearbox
Known brand by high torque.
04 Screen
Thickened steel screen with cover.
05 Hydraulic slider
Pushed the material close to the shaft ,and when the current reach the limited ,the slider will walk back for few second then go forward again.
06 Hydraulic pump
07 Shaft
Designed shaft specially for waste plastic lumps
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, Facebook, WhatsApp , WeChat, etc.)
