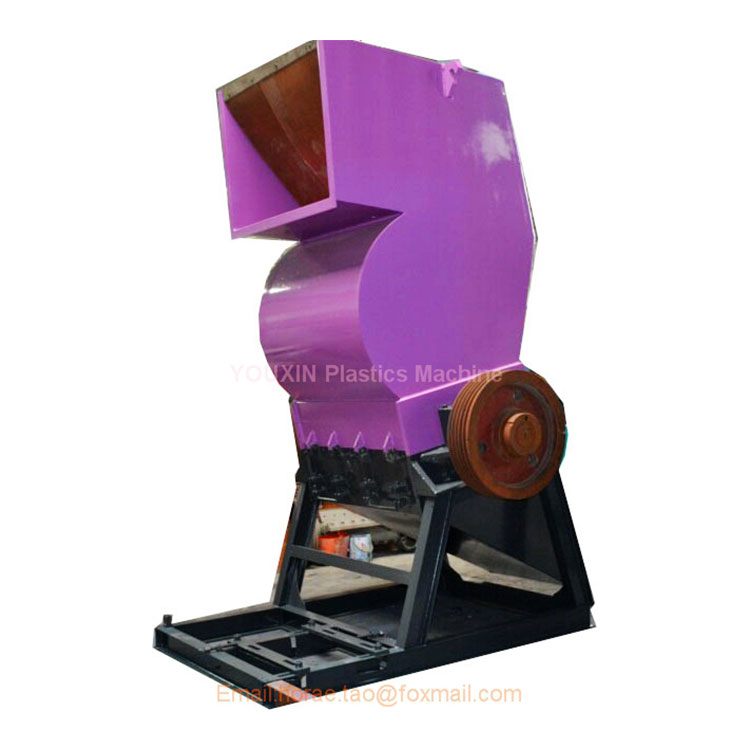

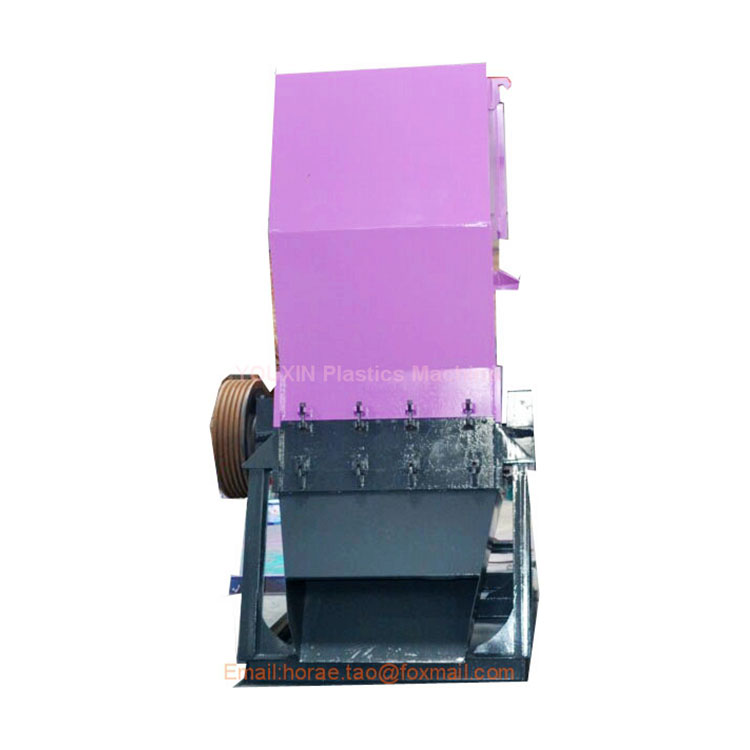

Waste Plastic Granulator for ABS PS shell is specifically designed for crushing ABS hard plastics, making it an essential tool in the recycling process. Over the past decade, YOUXIN plastic machinery has successfully expanded our customer base worldwide, which is a testament to the effectiveness and reliability of our Plastic Crushers. These machines are known for their strength, high efficiency, low energy consumption, and labor-saving features.
Waste Plastic Granulator for ABS PS shell works by using a blade to cut plastic into slices. The motor drives the blade rest shaft to make the rotating blade on the shaft rotate relatively against the machine's fixed blade, with the best cutting angle.Staggered rotating blades on the rest enable materials to drop inside under the squeezing, tearing and cutting action, thus crushing the materials.
| Waste Plastic Granulator For ABS PS Shell | |
| Usage Method | Reduce Plastics into small size |
| Motor Power | 75KW |
| The cover opening method | Manual |
| Qty of rotating blades | 15PCS |
| Qty of fixed blades | 4PCS |
| Rotor dia. | 600mm |
| Shaft Length | 1200mm |
1. The blade rotary can be customized,there are many different types of blades, each with different functions.
2. The crusher have strong structure which is using high quality steel material.
3. Knives can be adjusted outside of the machine.
4. High output crushing chamber design.
5. Oversized outboard bearings.
Waste Plastic Granulator For ABS PS Shell is used for crushing all kinds of waste plastics,specially for ABS TV shells, PS TV shells ,ABS washer shells,ABS air condition shells,Electric appliance shells,household shells . It can be used to crush and recycle all waste plastics, such as boxes,thin pipes, blow moulding parts, bottles, shells, household plastics, etc. or as an auxiliary machine of injection moulding machine to crush and reuse nozzle materials or defective parts of injection moulding machine.
01 Rotary spindle of Waste Plastic Granulator For ABS PS Shell
The spindle design can be customized according to different material requirements.
02 Screen of Waste Plastic Granulator For ABS PS Shell
Hole size can according to customer standard.
03 Bearing of Waste Plastic Granulator For ABS PS Shell
Bearing device is independent of the crushing room,the dust is isolated from the bearing to ensure long service life.
04 High-quality blades of Waste Plastic Granulator For ABS PS Shell
The machine is equipped with sharp blades that ensure efficient and consistent shredding performance.
05 Outlet of Waste Plastic Granulator For ABS PS Shell
There can be connect with a screw conveyor or a belt conveyor.
06 Motor pulley of Waste Plastic Granulator For ABS PS Shell
With heavy duty pulley easier for machine working.
07 Bottom of Waste Plastic Granulator For ABS PS Shell
Motor with low energy consumption, low noise, long service life.
Hydraulically driven hopper and box opening for easy maintenance.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
