Since more than 10 years development,YOUXIN® plastic machinery's Waste Plastic Bottle Crusher are strong,high efficiency,low energy consumption and save labor. Looking forward to your cooperation . If you want to know more, you can consult us now, we will reply to you in time!
Waste plastic bottle crusher is not specially indicated only to deal with the breaking of non-metallic materials such as plastic and rubber products with low hardness,fragile and certain toughness, such as PP, PE, PET, PVC and other waste materials. During the crushing process, no metal material or hard foreign matter shall enter the crushing chamber.

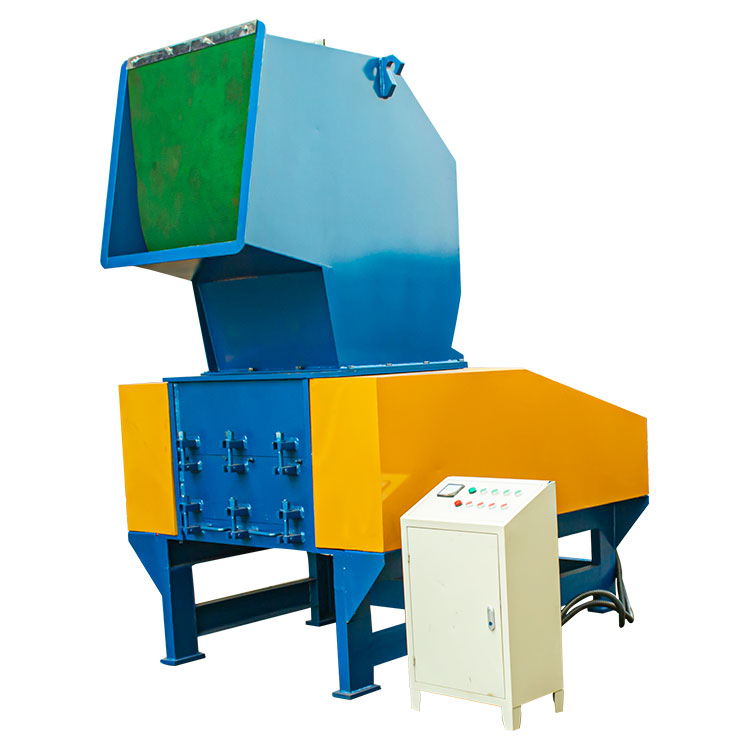

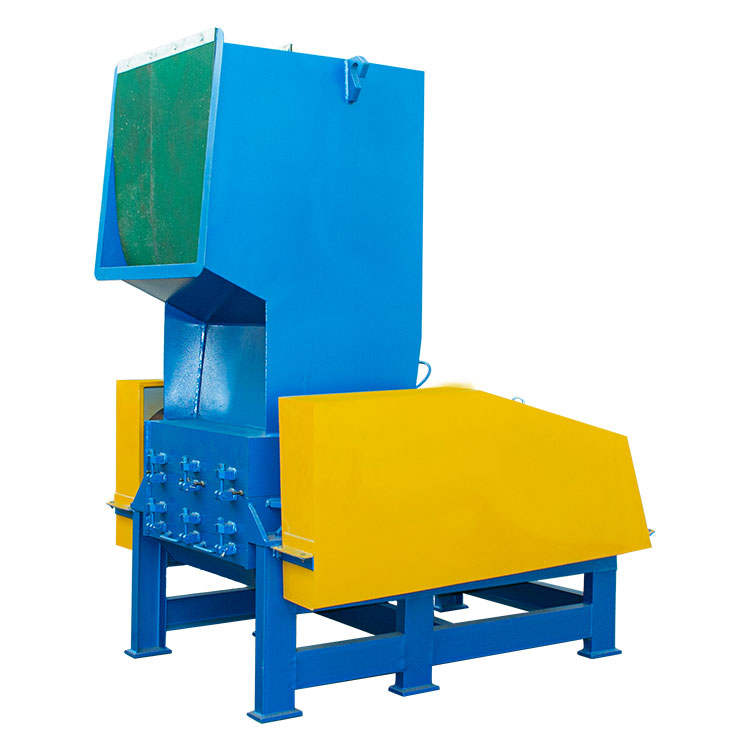

| Waste Plastic Bottle Crusher | |
| Usage Method | Reduce Plastic bottles into small size |
| Motor Power | 37KW |
| The cover opening method | Manual |
| Qty of rotating blades | 6PCS |
| Qty of fixed blades | 4PCS |
| Rotor dia. | 450mm |
| Shaft Length | 800mm |
1.The blade is wafer shaped;
2.Crushing is to break the material by cutting the blade, which can break the material to smaller particles;
3.With the screen, the size of the discharge can be controlled through the screen, the screen mesh is usually within 20mm, the standard 14mm, can be customized according to the requirements.
4.Usually broken film material, thin wall material, such as pipe, the wall thickness can not be greater than 4mm
Waste Plastic Bottle Crusher is mainly used to crush Plastic bottles,water bottle,Plastic cola bottles,Drinking bottles,Plastic profile,Plastic sheets, plastic buckets, plastic containers,Plastic desk,Plastic Table,Plastic furniture, plastic chairs, etc.

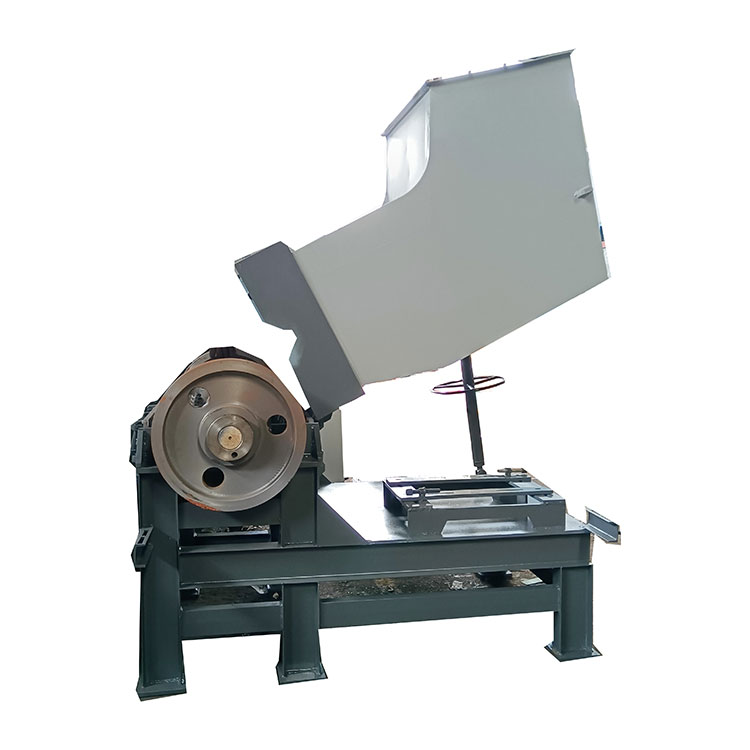

01 Spindle Rotor
V-type strong blade bed system can disperses the pressure and therefore it is good to be used to crushing materials
02 The bottom of Waste Plastic Bottle Crusher
Adopt high quality All Copper motor : Smooth output, Strong Power.
Radiator Hood: Make the motor performance good and can be used for a long time.
03 Thickened screen
Various size of screen can be choose.
04 Bearing Seat
Protective bearing covers to avoid foreign contamination entering the bearing housing.
05 High-quality blades
1.The blade adopts high strength alloy tool steel.
2.The knife set can be removed and replaced, good toughness, wear-resisting, adjustable extension length, even granulation.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
