Zhejiang YOUXIN plastic machinery Co.,ltd,is a company,which is specialized on plastic PVC Plastic Plate Sheet Granulator manufacturing and trading. YOUXIN has top-ranking research and development technology system and rich experienced technician team.

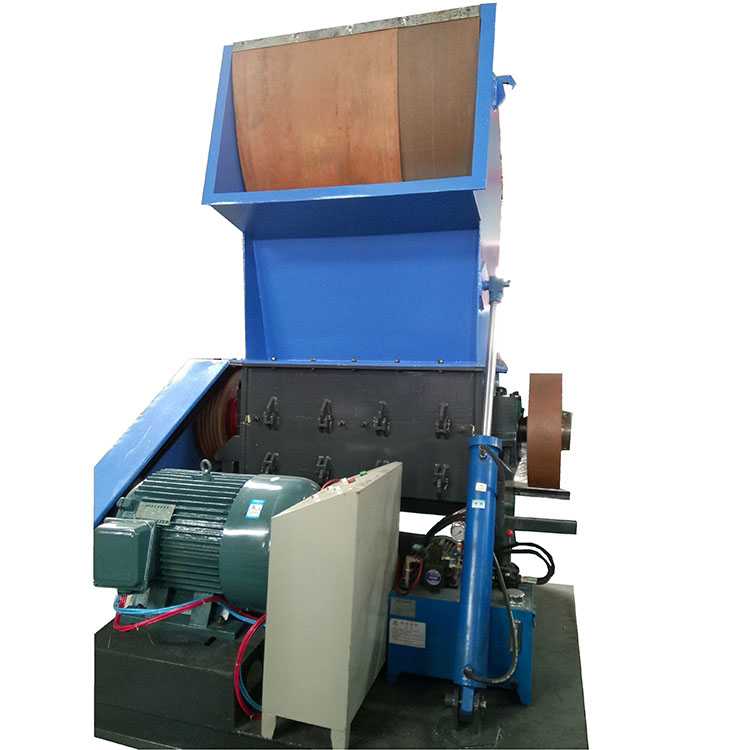

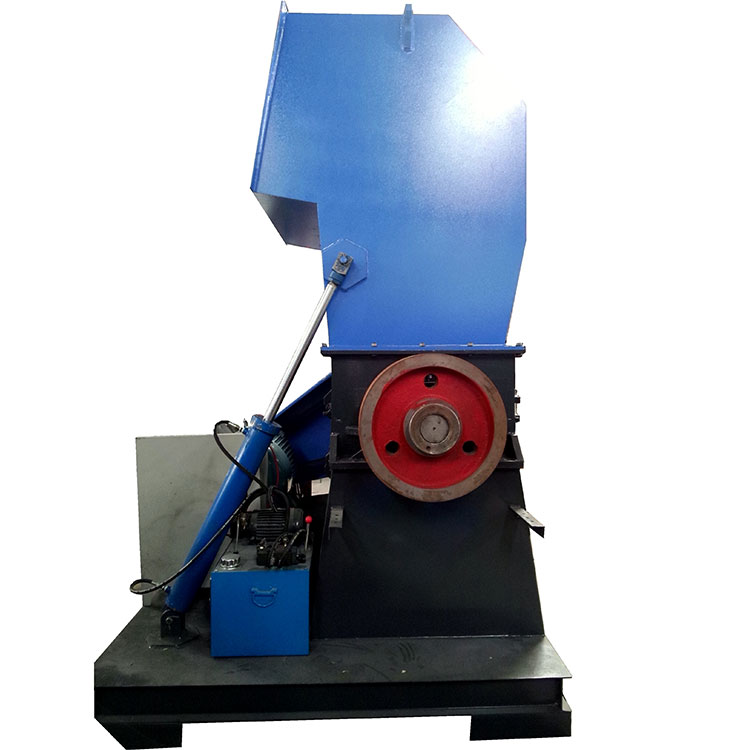

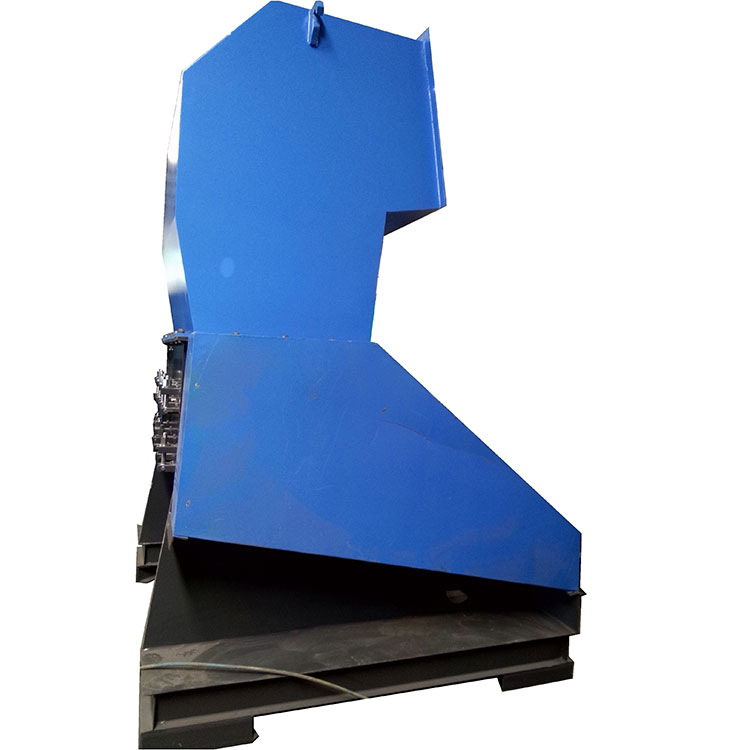

PVC Plastic Plate Sheet Granulator is heavy duty, high speed precision granulation machines designed for the rapid size reduction of various types of material in a single pass. The material is cut cleanly between the rotor and fixed knives, and cut down to a regrind size determined by the screen holes on the fitted screen.
| PVC Plastic Plate Sheet Granulator | |
| Usage Method | Reduce Plastic sheets into small size |
| Motor Power | 75KW |
| The cover opening method | Hydraulic |
| Qty of rotating blades | 9PCS |
| Qty of fixed blades | 4PCS |
| Rotor dia. | 600mm |
| Shaft Length | 1200mm |
1. Use high-intensity steel screws to fasten the knife leaf and knife seat, having strong Bearing capacity.
2. All walls of crushing chamber are treated by sound-proof, so having extra-low noise.
3. The blade is wafer shaped;
4. The blade set can be removed and replaced, good toughness, wear-resisting, adjustable extension length, even granulation
5. With high-intensity steel screws to fasten the knife leaf and knife seat, having strong bearing capacity.
6. With the screen, the size of the discharge can be controlled through the screen.
1.Plastic(Plastic drums, Barrels, Bottles, Tanks, Baskets);
2.Plastic sheets;
3.Electronic waste;
4.Waste household appliances;
01 Spindle Rotor
Staggered blades design can decentralize working load when granulating to increase cutting efficiency.
02 The bottom of PVC Plastic Plate Sheet Granulator
All copper wire motor design:smooth output,strong power.
Using the hydraulic system easily crushing chamber opening,maintenance is convenient
03 Thickened screen
Customized high-quality and stable screen can be customized screen aperture.
04 Bearing Seat
Bearing device is independent of the crushing room,the dust is isolated from the bearing to ensure long service life.
05 High-quality blades
High-strength alloy tool steel, which has a high hardness and robust wear resistance, is used to make the blades.
06 Motor pulley
Inertia Pulley wheel and flywheel to improve cutting strength.
07 Outlet
There can be connect with a screw conveyor or a belt conveyor.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
