YOUXIN Plastic Machinery is a professional research and development enterprise specialized in producing and customizing high-quality PP PE PVC plastic film granulators.This equipment can quickly crush various plastic film into small particles, facilitating subsequent recycling, reuse, or disposal.

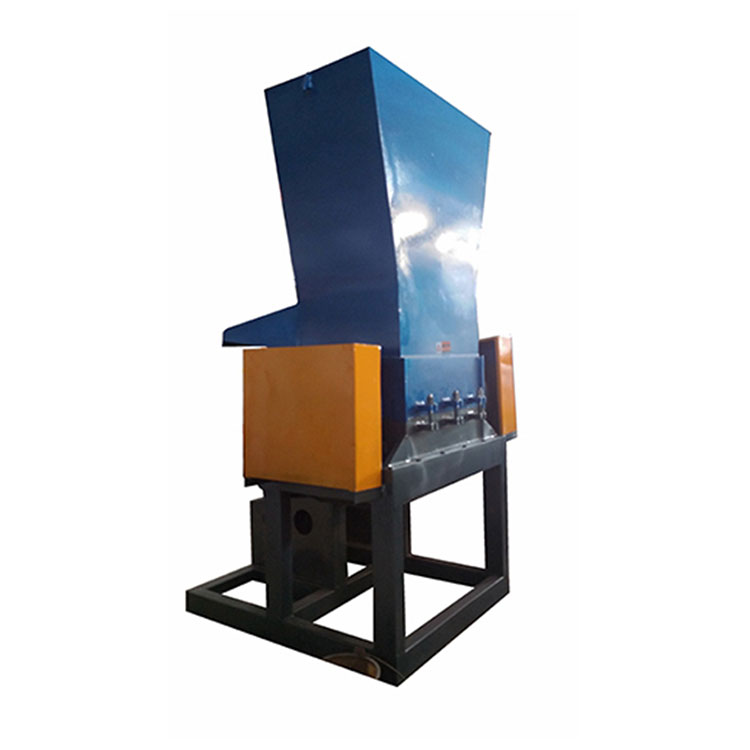

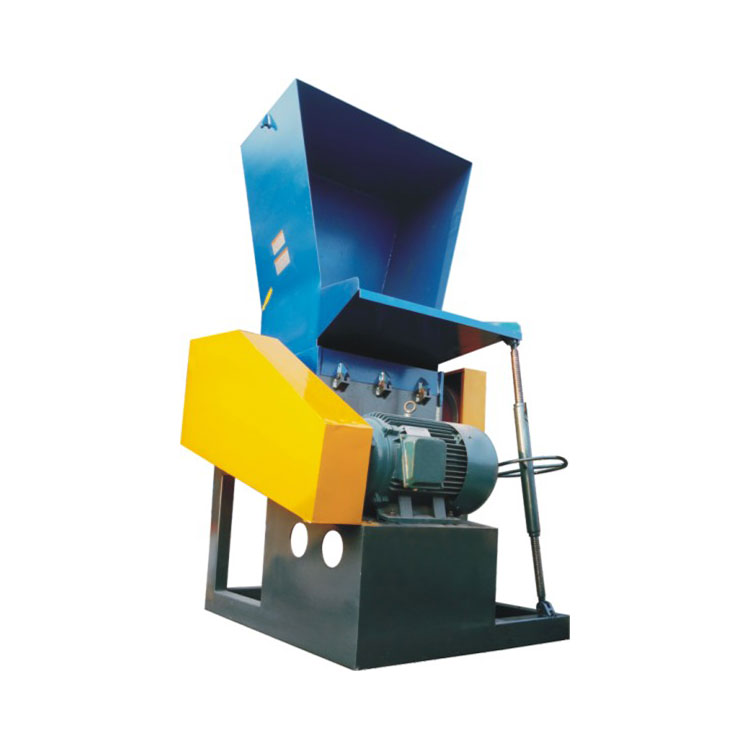

PP PE PVC Plastic Film Granulator is a customized plastic crusher which is designed for waste plastic film.This plastic crusher machine is robust, fast, high-precision granulating devices built to quickly reduce the size of a variety of materials in a single pass.
| PP PE PVC Plastic Film Granulator | |
| Usage Method | Reduce Plastic film into small size |
| Motor Power | 45KW |
| The cover opening method | Manual |
| Qty of rotating blades | 6PCS |
| Qty of fixed blades | 4PCS |
| Shaft Length | 800mm |
1. Special designed structure safety system to keep machine and people in safe;
2. The structure is made by thickness high-quality carbon steel;
3. Different types of rotating blades are available;
4. Blade made form high quality steel, can be adjusted independently, and can be sharpened for many times and repeated use.
5. The feeding port equip with the flexible baffle that can prevent materials form sputtering;
6. Easy to clean and maintain, the hopper, crusher room, blades and screen can be removed and mounted easily.
PP PE PVC Plastic Film Granulator is used for crushing the waste plastic film,such as PP film,PE film ,PVC film,PET film,PAMM film, etc. This plastic granulator also can use for PP woven bags,raffia bags,PE plastic bags and so on.
01 Spindle Rotor
Balanced main shaft to ensure safely smoothly running.
02 Motor
The motor adopts all copper wire motor,long life and durable.
03 Bearing Device
Bearing device is independent of the crushing room,the dust is isolated from the bearing to ensure long service life.
04 High-quality blades
Alloy steel blade,sharp blade and durable,material crushing more uniform.
05 Band Wheel
The granulate have both brand wheel and weight wheel to help the machine working balance and enhance the shearing force;
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
Plastic crushers are designed to be robust and long lasting. However, it's very important to keep a plastic crusher properly maintained which will prevent costly repairs or parts exchanges in the future.
First and foremost, it is essential to routinely sharpen and rotate both the rotor and stationary knives. This will ensure maximum crushing efficiency, as well as putting less stress on the wear and tear of the machine.
During operation, make sure the keep foreign, stiff objects such as metals away. Commonly overlooked items such as nuts and bolts have the potential to severely damage a plastic crusher by chipping knives, damaging the rotor, and even breaking through a crushing machine's casing.
Always keep an eye on the plastic crusher screen making sure it is not clogged during operation. A clogged plastic crusher screen blocks cut pieces of plastic from exiting the grinding causing a buildup of material inside the cutting chamber which jams the rotor. A jammed rotor can lead to the premature wear of the drive belts, and in more serious cases, a burned out electric motor.
Lastly, always keep the motor and bearings well oiled.
