YOUXIN plastic machinery has many years of experience in designing, manufacturing, and supplying PP PE Plastic Sewage Pipe Granulator to customers worldwide and is committed to using high-quality materials and components in all of their products. With excellent after-sales support, including installation, training, and maintenance services.We are a reliable partner for businesses, Welcome to contact us.

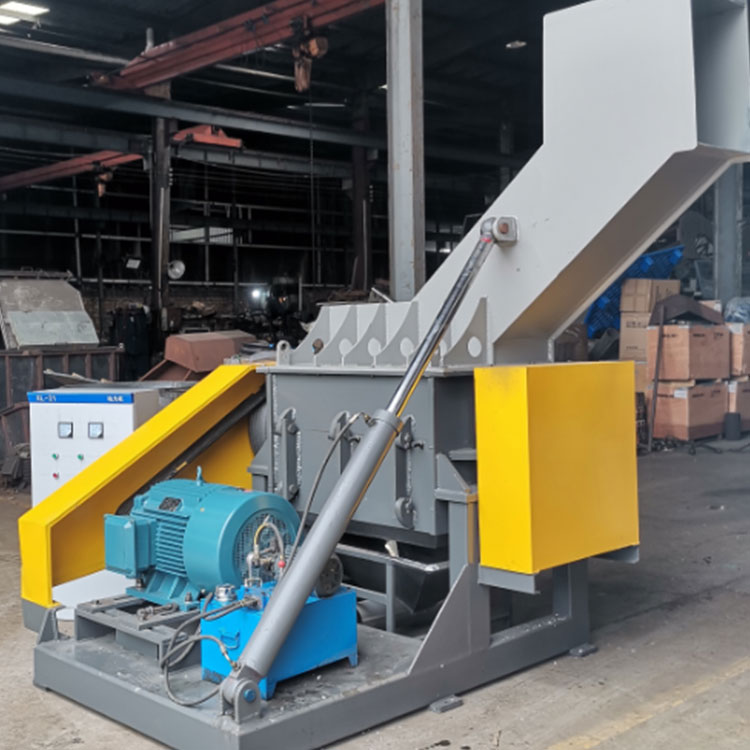

The PP PE Plastic Sewage Pipe Granulator works by using a blade to cut plastic into slices. The motor drives the blade rest shaft to make the rotating blade on the shaft rotate relatively against the machine's fixed blade, with the best cutting angle.Staggered rotating blades on the rest enable materials to drop inside under the squeezing, tearing and cutting action, thus crushing the materials.
| PP PE Plastic Sewage Pipe Granulator | |
| Usage Method | Reduce Plastic pipe into small size |
| Motor Power | 75KW |
| The cover opening method | hydraulic |
| Qty of rotating blades | 6PCS |
| Qty of fixed blades | 4PCS |
| Shaft Length | 1000mm |
1 The suitable structure of cutter roller can be selected according to the broken materials required by customers.
2 High safety factor bearing, reduce the probability of bearing damage.
3 Independent control box,with CHINT component.
4 It has the characteristics of economy, practicability, simple operation and long service life.
PP PE Plastic Sewage Pipe Granulator is designed with high hardness steel template, and is sturdy and durable. Shaft made of special material processing,not easily deformed.Cutter can be adjusted independently. and can be sharpened with repeated use.This machine can crush waste plastics, such as boxes,thin pipes,HDPE pipe ,HDPE sewage pipe,PPR water pipe, PVC pipe , blow moulding parts, bottles, shells, household plastics, etc.
01 Spindle Rotor
Balanced main shaft to ensure safely smoothly running.
02 The bottom of PP PE Plastic Sewage Pipe Granulator
Using heavy duty motor ,prolonged service life and durable.
Hydraulically driven hopper opening for easy maintenance.
03 Thickened screen
Customized high-quality and stable screen can be customized screen aperture.
04 Bearing
Use the big roller bearing ensure durable use, bearing house is installed outside the chamber so no dirty goes inside which prolong the lifespan.
05 High-quality blades
The plastic crusher blade is made of excellent material which has good sharpness and abrasion resistance.
06 Motor Pulley
With heavy duty pulley easier for machine working.
Inertia flywheel to improve cutting strength.
07 Outlet
There can be connect with a screw conveyor or a belt conveyor.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
