PP Pallet Plastic Crusher

YOUXIN Plastic Machinery is a Chinese manufacture,specialized in producing and providing PP pallet plastic crushers. YOUXIN insists quality first, customer first for the purpose,ll our plastic crushers are made by quality raw materials, all the shaft had past static and dynamic trial, and all the plastic crushers should be tested before delivery.

Send Inquiry

Product Description

Introduction of PP Pallet Plastic Crusher

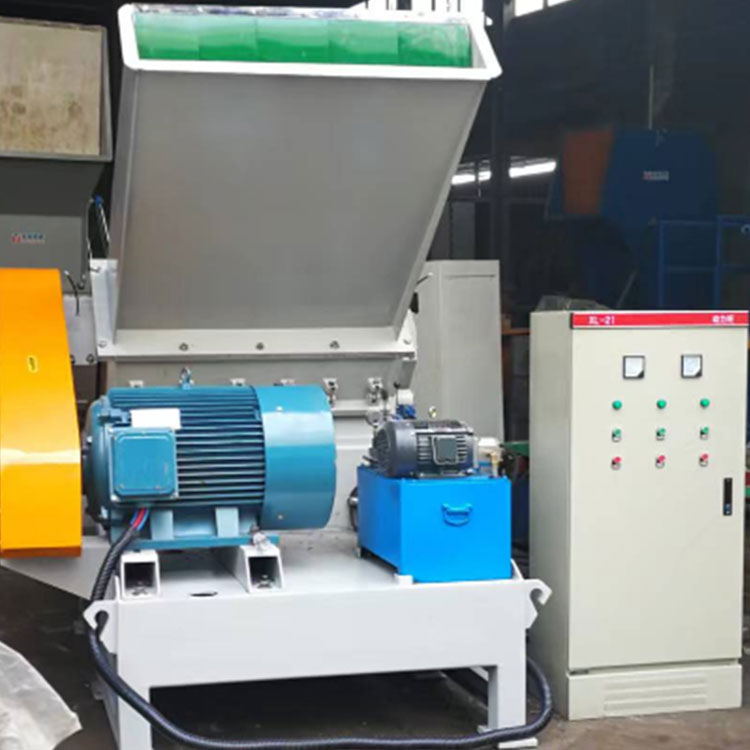

A PP Pallet Plastic Crusher is one kind of the important waste plastic recycling machines,which is used to reducing waste PP pallet into small flakes by crushing the pallet with the rotating and fixed blades, and the screen mesh will control the flakes in a uniform size. The PP pallet plastic crusher has strong structure,and equips powerful motor and sharped blades to ensure the crushing performance and effect.


Product Parameter of PP Pallet Plastic Crusher

PP Pallet Plastic Crusher
Usage Method Reduce Plastic pallets into small size
Motor Power 75KW
The cover opening method Hydraulic
Qty of rotating blades 9PCS
Qty of fixed blades 4PCS
Rotor dia. 600mm
Shaft Length 1200mm


Features of PP Pallet Plastic Crusher

PP pallet plastic crusher is a useful equipment in waste plastic recycling process, it has many features ,such as:

1-strong structure made by strength welded quality steel.

2-Sharped blades made hardness and wear-resistance materials ,like 9CrSi

3-The motor adopts all copper wire motor,long life and durable.

4-The spindle rotor adopts high-strength welded steel structure with a unique shape design.

5-The feeding hopper opens by hydraulic,which is conveniently for change the blades and maintain.


Application of PP Pallet Plastic Crusher

PP Pallet Plastic Crusher is special crusher for the PP plastic pallet, mainly for similar materials pallet, pipe, plastic doors and windows and other wide format thickness of small plastic products. The plastic crusher is usually used as fine shredding due to its high rotational speed and sharp blades. Fine shredding is especially important for making graded material that is going on to be reused.


Detail of PP Pallet Plastic Crusher

01 Spindle Rotor of PP Pallet Plastic Crusher

All spindles have passed strict dynamic and static balance tests to ensure the reliability of machine operation.


02 The bottom of PP Pallet Plastic Crusher

The motor adopts all copper wire motor,long life and durable.


03 Thickened screen of PP Pallet Plastic Crusher

Customized high-quality and stable screen can be customized screen aperture.


04 Bearing Seat of PP Pallet Plastic Crusher

Protective bearing covers to avoid foreign contamination entering the bearing housing.


05 High-quality blades of PP Pallet Plastic Crusher

9CrSi knife, sharp edge, easy to replace, durable.


06 Outlet of PP Pallet Plastic Crusher

There can be connect with a screw conveyor or a belt conveyor.


07 Motor pulley of PP Pallet Plastic Crusher

Large diameter size belt wheel make the equipment run stable during working


08 Hydraulically Driven of PP Pallet Plastic Crusher

Hydraulically driven hopper opening for easy maintenance.


09 Protective cover of PP Pallet Plastic Crusher

This cover have two roles,first protection ; second , heat radiation.


10 Electric cabinet of PP Pallet Plastic Crusher

The equipment adopts electrical components from CHINT.


Quality of PP Pallet Plastic Crusher

We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.


Professional of PP Pallet Plastic Crusher

OEM and ODM are available.
