YOUXIN Plastic Machinery is an Chinese manufacturer devote to the development, research and production of Plastic shredder machines for post-consumer plastic waste. We have worked directly with plastic recyclers worldwide to engineer high performance plastic shredding technology that satisfies real industry challenges.
What is a Plastic shredder machine for post-consumer plastic waste?

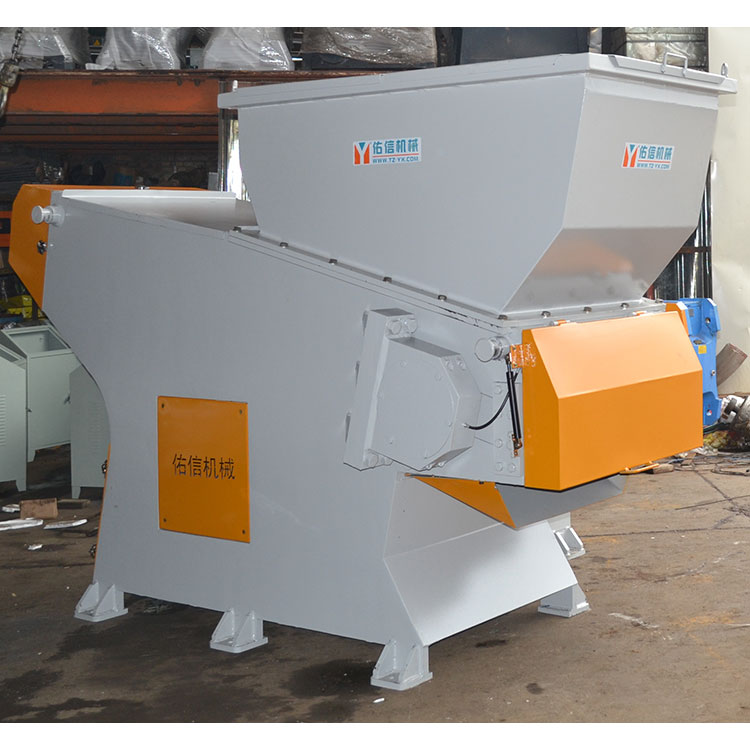

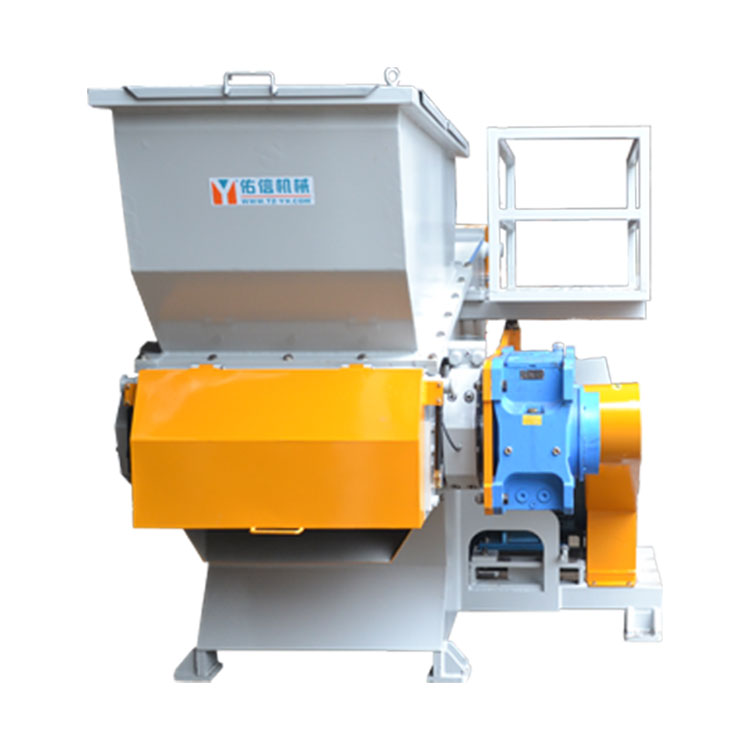

Plastic shredder machine for post-consumer plastic waste uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, and paper etc. The cutter head is consists of basic shaft and pieces of quadrangle cutter. The material is grabbed between 'V' shaped rotary cutters and fixed cutter shreds repeatedly. During the grinding process, the evenly cutting, saving of energy and reducing of noise are ensured by the installation of 'V' shape rotor knives. Also the knives are very easy to install and remove.
| Plastic shredder machine for post-consumer plastic waste | |
| Model | 800 |
| Motor Power | 37KW |
| Hydraulic motor | 5.5KW |
| Qty of rotating blades | 48PCS |
| Qty of fixed blades | 4PCS |
| Shaft Length | 800mm |
Our plastic shredder machine for post-consumer plastic waste is one of the most important equipment in waste plastic recycling process, which introduces a number of shredder features to aid plastic shredding performance, by design, including versatile cutting configurations for varied applications, low wear parts to minimise whole life costs, easy maintenance regimes for maximum uptime, and quick-change screens for defined fraction sizing.
Plastic shredder machine for post-consumer plastic waste is used to recycle plastic, Suitable raw materials:
1. All kinds of plastic lump: PP lumps, PE lumps, PVC lumps, plastic head materials, plastic die materials.
2. 2.Pipe material: large pipe, pipe fitting and PE pipe.
3.Plastic pallets,plastic trays,plastic sheets,plastic plates.
01 Motor
Pure copper motor output stability efficiency is higher.
02 Electronic cabinet
The equipment adopts electrical components DELIXI.
03 Gearbox
Hardened helical gear reducer.
04 Screen
Customized high-quality and stable screen can be customized screen aperture.
05 Hydraulic slider
Hydraulically driven ram to push the materials.
06 Hydraulic pump
Oil cylinder with water cooler.
07 Shaft
The spindle rotor adopts high-strength steel structure with a unique shape design.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, Facebook, WhatsApp , WeChat, etc.)
