YOUXIN Plastic Machinery has been focusing on manufacturing and supplying various of plastic recycling machines,such as Plastic Bottle Scrap Grinder Machine ,plastic film crusher, waste plastic grinder, waste plastic granulator, plastic bottle grinder,plastic pallet grinder, plastic shredders, crushers, cleaning lines, and other plastic recycling equipment. All our plastic machines have excellent quality, we take our hearts to serve you and provide you the best product and services.

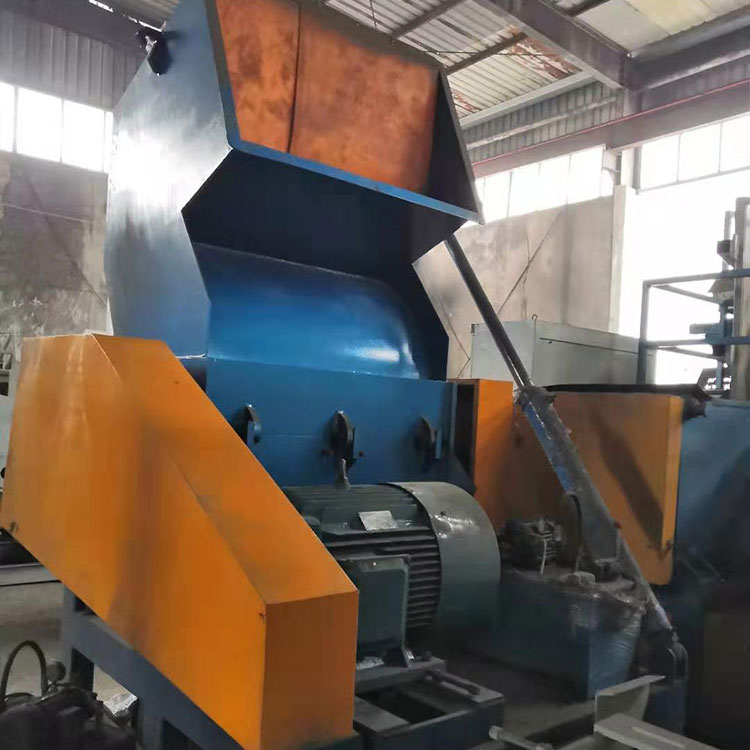

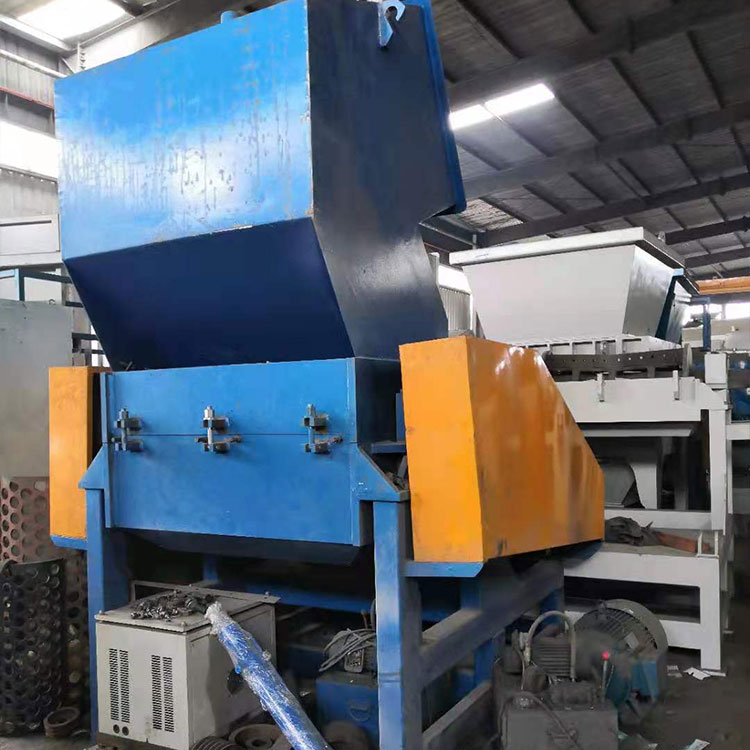

Plastic Bottle Scrap Grinder Machine is a kind of plastic waste size reducing machine,that is designed specially for Plastic bottles,has force feeding system at the feeding hopper to help input the plastic bottles quick ,and avoid the bottles bounce in the hopper. The plastic bottle scrap grinder have a high capacity in plastic bottle crushing .
| Plastic Bottle Scrap Grinder Machine | |
| Usage Method | Reduce PET bottles into small size |
| Motor Power | 75KW |
| The cover opening method | Hydraulic |
| Hydraulic pump motor | 1.5KW |
| Qty of rotating blades | 6PCS |
| Qty of fixed blades | 4PCS |
| Rotor dia. | 600mm |
| Shaft Length | 1200mm |
| Forced Inlet motor | 3KW *2set |
Plastic bottle scrap grinder is an essential equipment in waste plastic recycling process, it has many features.
1-The structure of the plastic grinder is made by strength welded carbon steel.
2-The shaft is used specially for plastic bottles grinding ,with unique design.
3-The blades are made by 9CrSi
4-The plastic grinder equips a force feeding system.
5-With hydraulic system to open the machine
6-With independent electronic cabinet.
The High quality plastic bottle scrap grinder is easy to use,less to maintain,and have perfect performance. This plastic grinder is suit for many kind of waste plastics, not only plastic bottles,such as PET water bottles, PP milk bottle, plastic drink bottles,etc;but also hollow plastic like Plastic trays ,plastic toys ,plastic sheets, plastic plate sheet ,plastic profile and so on.
01 Heavy-duty Spindle Rotor
designed spindle rotor specially for plastic bottles.
02 Forced Inlet
Force feeding system with two motors to raise up the material input speed.
03 The bottom of Plastic Bottle Scrap Grinder Machine
Adopt high quality motor , low energy consumption, low noise, long service life.
The upper cabinet is hydraulically controlled, which is convenient for machine maintenance and the replacement of blades.
04 The Outlet of Plastic Bottle Scrap Grinder Machine
There can be connect with a screw conveyor or a belt conveyor.
05 Pulley
The machine equips large pulley to make the machine working smoothly.
06 screen
The screen mesh can be ordered by customer's need .
07 Bearing
Bearing is form famous brand.
PET flakes for Thermoforms,for Film or Sheets,for Fibers, or for Strapping
