YOUXIN Plastic Machinery specializes in manufacturing various types of waste plastic shredding machines, include plastic agricultural film shredder machine, plastic lump shredder machine. All plastic shredders produced from YOUXIN Plastic Machinery, adopts high quality raw materials and skilled welded,and we control all processing procedures, to ensure the plastic shredders with excellent quality and perfect performance. At the same time, all machines must pass operational tests before leaving the factory.

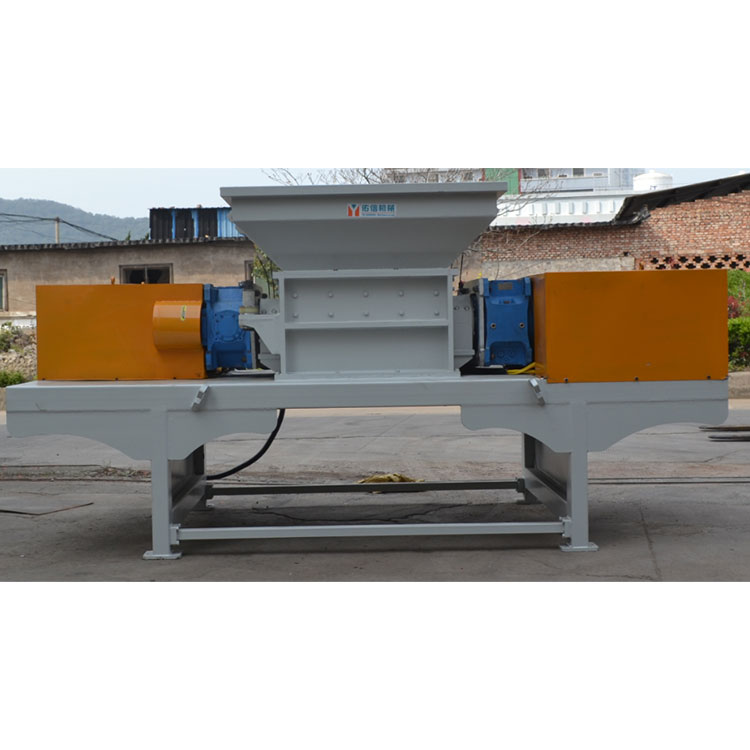

What is a Plastic Agricultural Film Shredder Machine?
Plastic Agricultural Film Shredder Machine is one of the most important plastic shredding machine in waste plastic recycling process.The material enters the inside of the shredding box through the feeding system, and the box is loaded with shredding blades. The materials are shredded into small pieces after the combined effects of the shredding blades torn, squeeze, and shear. Material, discharged from the lower part of the box.
| Plastic Agricultural Film Shredder Machine | |
| Model | 1000 |
| Motor Power | 55KW*2sets |
| Hydraulic motor | NONE |
| Qty of rotating blades | 120PCS |
| Qty of fixed blades | 8PCS |
| Shaft Length | 1000mm |
1)The shredder machine with big feeding mouth, it can put the big material successfully.
2)The rotary knife with edge of special design, it can get very high efficiency and high capacity.
3)The shredder machine is control by PLC control system; the knife can rotate in opposite direction and close automatically if something unexpected happens; with very high safety service.
4)The shredder machine runs slowly with low noise and less dusty.
5)The knife material with special alloy steel made, high temperature treatment,with long life time.
The Plastic Agricultural Film Shredder Machine adopted advanced technologies, this kind of machine can be used for shredding many kinds of plastic film: plastic agricultural film, plastic mulching film, plastic packaging film,etc. The customer can choose the satisfied model according to the size of the waste products and the capacity you want to get.
01 motor and gearbox
Using pure copper wire motor,and quality gearbox with high torque.

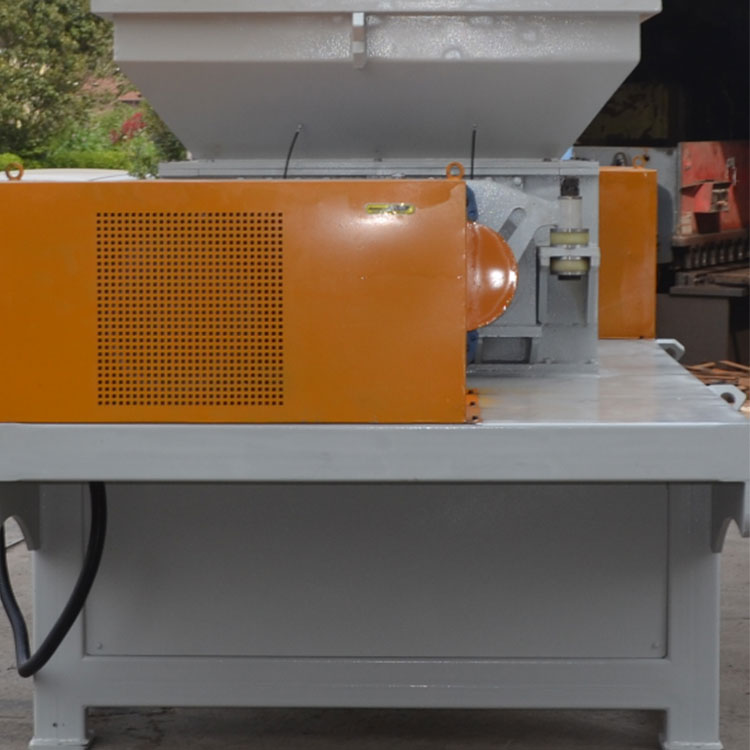

02 protection cover
Can protect the operator from the damage of the motor and v-belt.
03 bearing
The bearing pedestal adopts the split type, easy to maintain and replace the blade.
04 Rotary Shaft
High strength steel, good wear resistance, high strength.
Shredded plastic can have different sizes (small, medium, large) and can be sorted by colors to add value.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, Facebook, WhatsApp , WeChat, etc.)
