YOUXIN plastic machinery is a professional manufacturer has varied experience and craftsmanship in producing Nylon plastic grinder machine. To ensure our machines with good quality,all the plastic grinder machines had been past the running test before delivery.

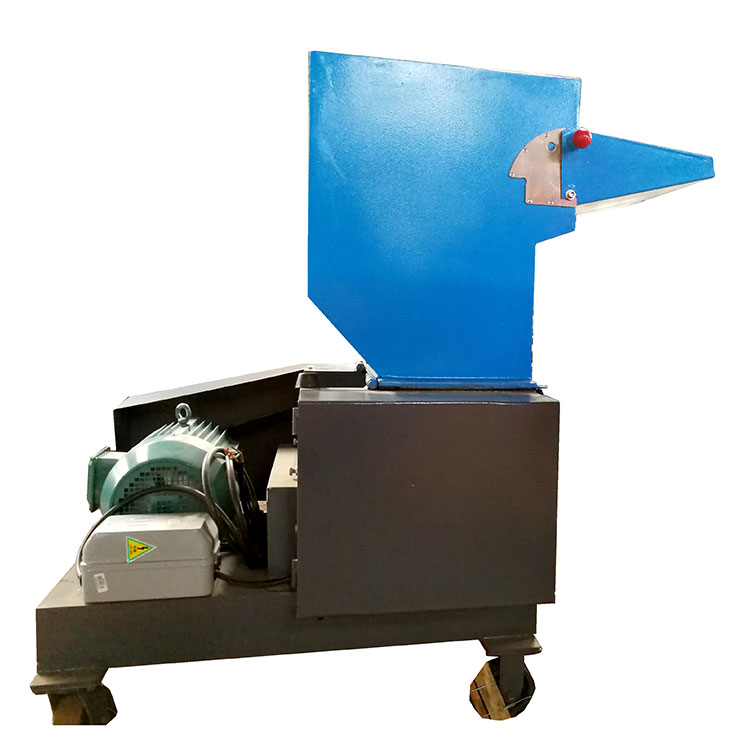

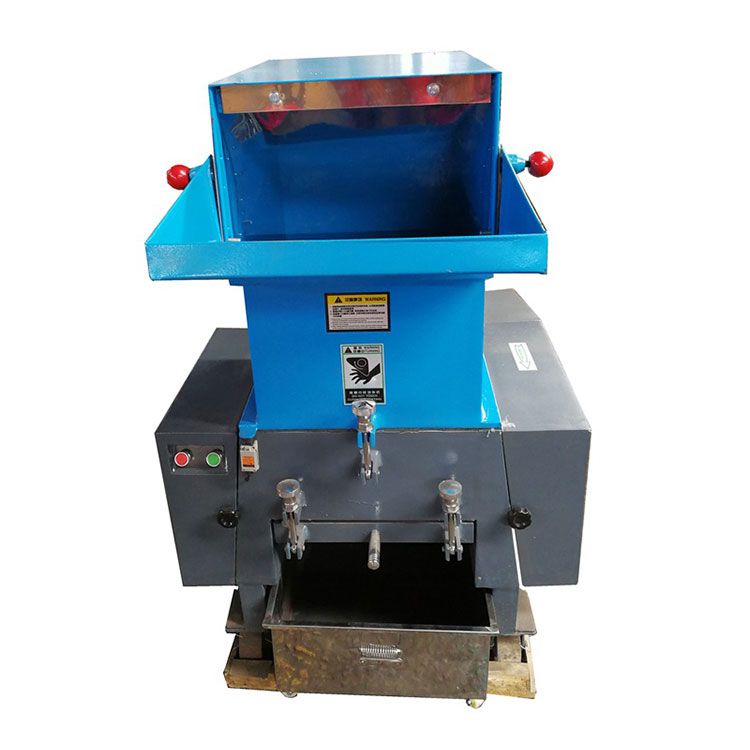

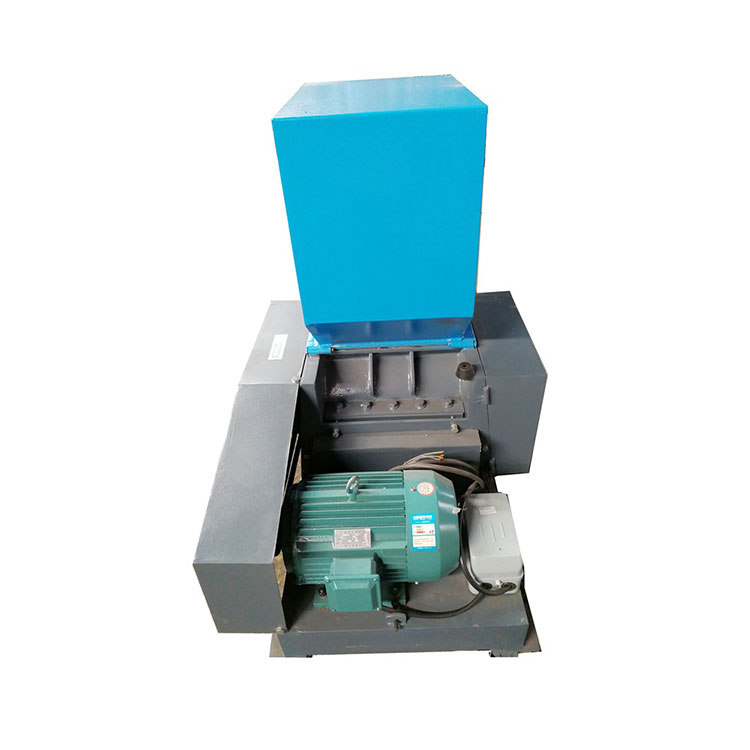

Nylon Plastic Grinder Machine is a kind of Plastic Crusher ,which is specifically designed for disposing of waste plastics Nylon . This Plastic crusher is use to reduce the size of plastic waste materials for further processing and recycling. The crusher works by breaking the plastic items down into smaller pieces that can be fed into other machines for further processing.
| Nylon Plastic Grinder Machine | ||||
| Model | 400 | 500 | 600 | 800 |
| Motor Power | 7.5KW | 11KW | 15KW | 22KW |
| The cover opening method | Manual | Manual | Manual | Manual |
| Qty of rotating blades | 2PCS | 2pcs | 4PCS | 4PCS |
| Qty of fixed blades | 12PCS | 15PCS | 18PCS | 24PCS |
| Shaft Length | 400mm | 500mm | 600mm | 800mm |
1- The whole machine adopts high hardness durable steel template.
2-The blade can be adjusted independently ,also can be sharpened with repeated use.
3-Feeding hopper, main axis, and filter can be disassembled easily for cleaning.
Nylon Plastic Grinder Machine is mainly used to crush various waste plastics, such as plastic profiles,pipes, rods, threads, films, and waste Nylon plastics.
01 Spindle Rotor
Claw-shape blade bed system can disperses the pressure and therefore it is good to be used to crushing hard and raw material
02 The bottom of Nylon Plastic Grinder Machine
All Copper Design: Smooth output, Strong Power.
03 Radiator Hood: Make the motor performance good and can be used for a long time.
04 Electric cabinet
With over-loading protection with power source interlock protection device.
05 Top hopper
The top hopper can be folded and unfolded, fixed by the roll screw.
06 Material box.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
