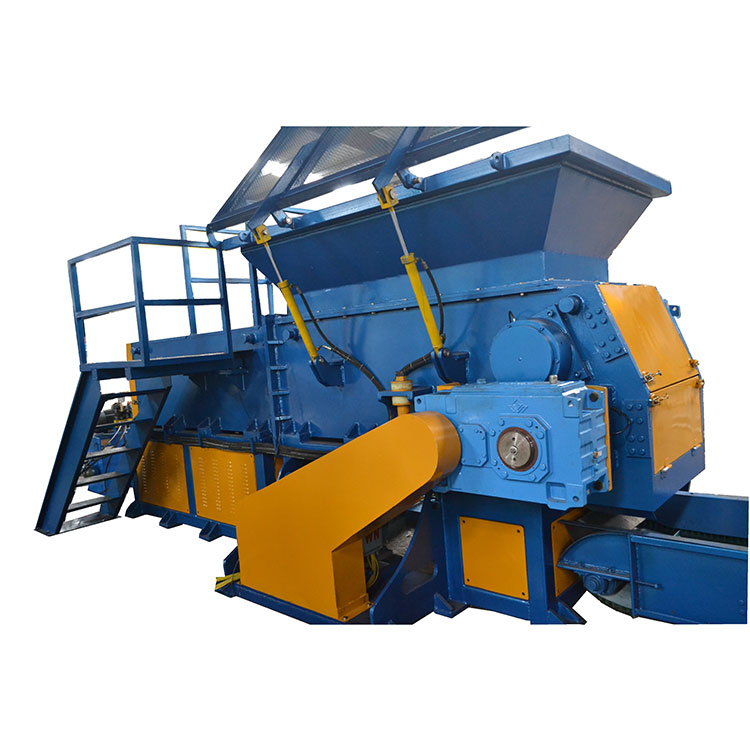

The Dual Shaft Plastic Lump Shredder manufactured by YOUXIN plastic machinery is widely used in the waste plastic recycling industry due to its excellent quality, excellent performance, and efficient production capacity. Dual shaft plastic lump shredder is suit for shearing various numerous plastic wastes, such as plastic lumps, plastic blocks, plastic die materials, plastic injection head materials, plastic pipe, plastic film, plastic barrels, etc.
Plastic shredder is one of the indispensable equipment in waste plastic recycling process. Dual Shaft Plastic Lump Shredder equipped two high torque gear reducers and two pure copper wire motors,and have huge shredding chamber and sharped blades on the shafts, so it can treat large, hard, and heavy plastic wastes, which is hardly to shred. It can shred plastic lumps, plastic blocks, plastic die materials, plastic injection materials, and other big, thick-wall materials with no difficulty.
| Dual Shaft Plastic Lump Shredder | |
| Model | 800 |
| Motor Power | 37KW *2sets |
| Hydraulic motor | 11KW |
| Qty of rotating blades | 96PCS |
| Qty of fixed blades | 4PCS |
| Qty of shafts | 2 |
| Shaft Length | 800mm |
| Effective hydraulic distance | 3000mm |
The Dual Shaft Plastic Lump Shredder is an important waste plastic recycling machine. Because of the high torque gearbox reducing the speed and increase shearing force of the shaft, when the plastic lump shredder working, there's low speed, low noise,high capacity and less dusty. Meanwhile the plastic lump shredder is easy to operate, easy to maintain, and long-lasting to use.
Dual Shaft Plastic Lump Shredder is one of the wide-use waste plastic recycling machine. The plastic lump shredder is specially design for waste plastic lumps. such as plastic lumps, plastic blocks, plastic die materials, plastic injection head materials, plastic pipe, plastic film, plastic barrels, etc.
01 Hydraulic slider
Pushed the material close to the shaft ,and when the current reach the limited ,the slider will walk back for few second then go forward again.
02 Electronic cabinet
PLC power control system is adopted to detect the running data.
03 Gearbox
Adopts a well-known brand gearbox and rubber shock absorption device.
04 Hydraulic pump
Oil cylinder effective working Pushing speed is adjusted by manual.
05 Shaft
The rotary shaft made by high quality carbon steel,anti-worn
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
