The Agricultural Plastic Film Crushing And Washing Line manufactured by YOUXIN Plastic Machinery is an ideal arrangement pattern derived from decades of experience in plastic field. Meanwhile, we can also provide one-to-one customized service for customers, in order to meet specific demand of our customers. There are many different types of plastic recycling washing line in our company to cater for increasingly needs of plastic recycling washing fields.
Agricultural Plastic Film Crushing And Washing Line has smart modular design aiming at agricultural film, industrial packaging film, bag, blowing molding packaging bottle/box, injection and electronic waste recycling. It is including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and dewatering. Which can remove most of contaminants such as ferrous and nonferrous metals, sand, oil, glue, paper label and many other different contaminants efficiently.
Agricultural Plastic Film Crushing And Washing Line | |
Machine | Function |
Belt conveyor | For waste materials feeding |
Wet Film Crusher | Cut the PP PE film into small pieces and send out into the next machine. |
Screw conveyor | For the plastic flakes transmission |
High speed friction washer | Could achieve a good cleaning effects through the blades on the beating and rubbing. |
Floating washer | For flakes floating washing and conveying |
Dewatering machine | This machine is mainly used for the drying of the plastic flakes , centrifugal force to spin water moisture off the films and bags. |
The Agricultural Plastic Film Crushing And Washing Line can easily wash and recycle waste PP PE films/bags. Waste and dirty PP PE films/bags can be processed step by step, by this recycling machine. It is special for washing PP PE films/bags. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after been washed.
The Agricultural Plastic Film Crushing And Washing Line usually include:conveyor belt---Wet film Crusher machine---Screw conveyor---Flakes Floating washing tank---Lifting conveyor---Friction washing system---Flakes Floating washing tank---Lifting conveyor--- dewatering machinery ---storage system.
Agricultural Plastic Film Crushing And Washing Line is widely used to washing recycling the used plastic waste.
● LLDPE/LDPE/HDPE/PE/EPE film, crushed material, lithium battery film, foamed pearl cotton
● PP/OPP/BOPP/CPP film, woven bag,non-woven fabric (melt blown)
● PA66 fishing net, silk, factory trim, carpet
● PET/BOPET bottle flakes, film, silk, waste cloth, foam,optical film
● PTT wire
● EPS/XPS crushed material, cold briquetting foam, hot melt foam, insulation board
● HIPS/PC/ABS home appliance housing, electronic waste, factory plastic
● PVB crushed material, flakes
● PU
1-Belt conveyor
Conveying dirty plastic film into crusher. If too much scrap iron, metal detector may be needed.
2-Plastic crusher
Crushing the film/bags into small pieces, wet working with water, can also choose shredder instead.
3-Screw conveyor
Convey the crushed film to the next machine.

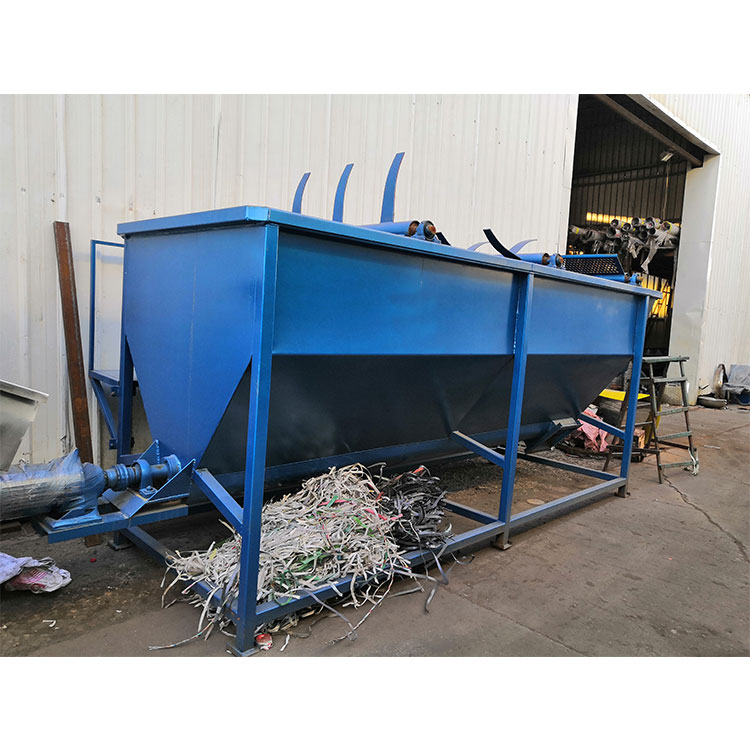

3-Floating washer
Washing out the dirty from the film or bags material by paddles.
5-High speed friction washer
Washing out the sand, soil and dirty water from the material with high rotary speed 1500 rpm.
6-Dewatering machine
Remove the water out from the material.
Shredded plastic can have different sizes (small, medium, large) and can be sorted by colors to add value.
We have advanced CNC machine center,testing equipment, and professional technician team to ensure the quality of our Plastic crusher.
OEM and ODM are available.
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, Facebook, WhatsApp , WeChat, etc.)
